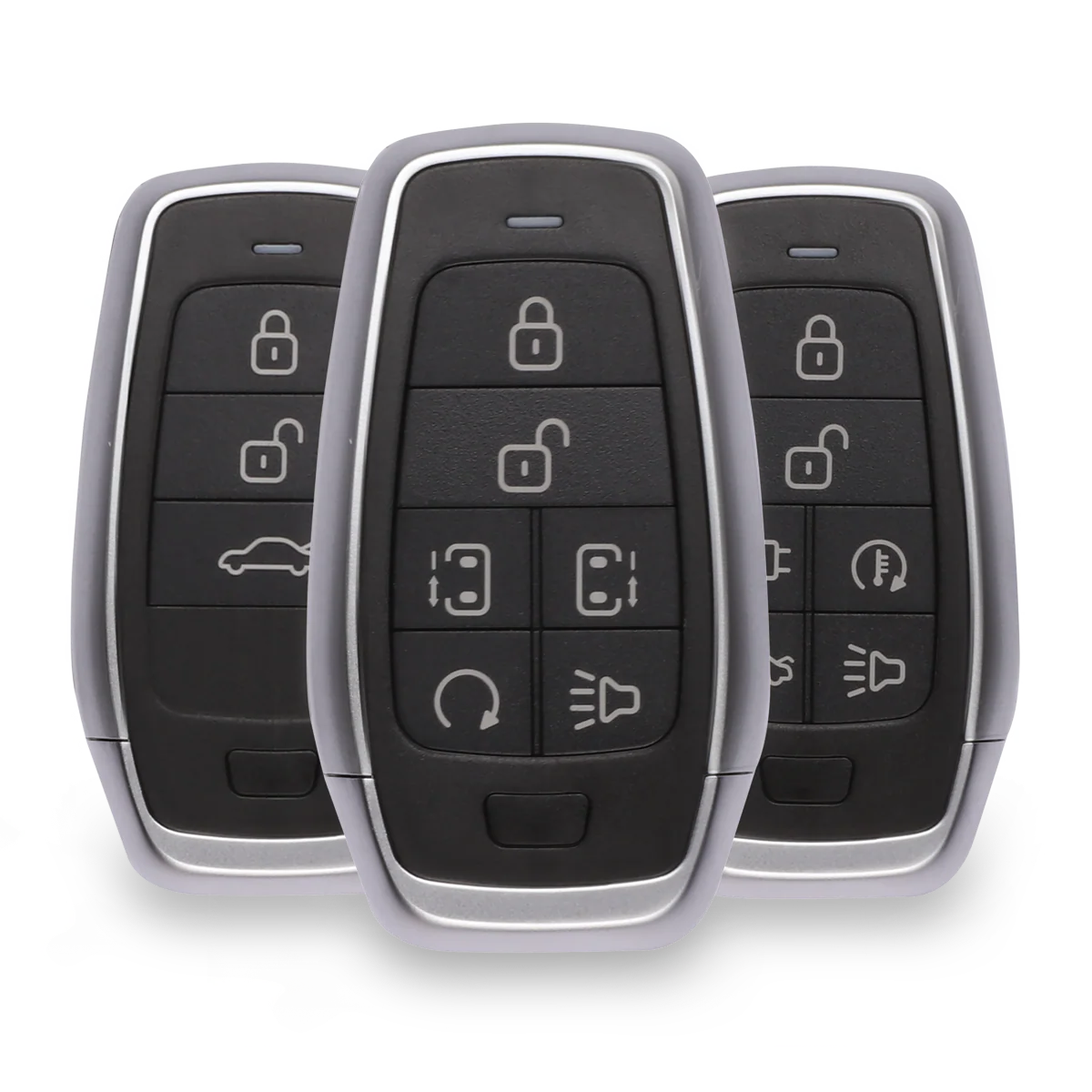

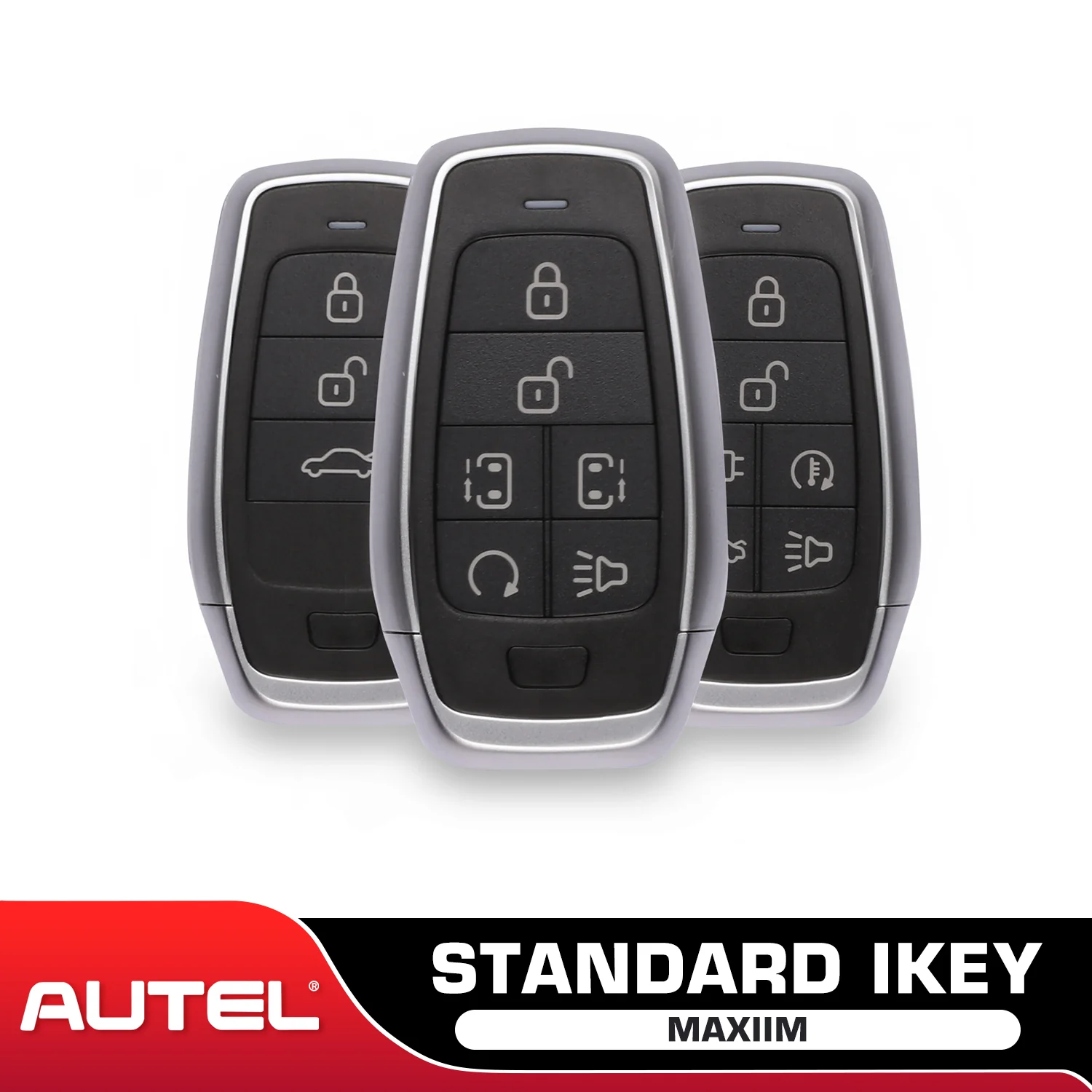

Standard Autel MaxiIM IKEY Universal Programmable Smart Key

The Autel IKEY is a universal programmable smart key that can be programmed to replace smart keys for more than 700 vehicles including those made by BMW, Hyundai, Nissan, Chryslers, Ford, Honda, General Motors. The IKEY is an OE-quality, 315M/433M frequency programmable smart key that supports two to seven button configurations and features a premium battery. Use the KM100 tablet to program the IKEY for supported vehicles in as little as a minute.

Autel MaxiIM IKEY Features

• Programmable smart key replacement for more than 700 vehicles
• Compatible with systems using 315M/433M frequencies
• Supports ultra-long range (40 meters/130 feet) frequency transmission
• Superior, OE-quality smart key that meets or exceeds industry and regulatory standards
• Multiple Style and Series options available soon

Autel MaxiIM IKEY Specifications

Appearance	8 Series
Battery	CR2032/CR2450
Battery Life	>1 year
Number of Buttons	2-7
Working Frequency	315M/433M
Power Consumption	<6.5 uA (standby)
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Warranty	1 year

AUTEL IKEY Can Work With KM100 - Providing Complete IMMO and Key Programming Capabilities

Autel universal programmable IKEY. Use the Autel MaxiIM KM100 to program IKEY to replace an expansive list of OE Smart Keys, including those used by Hyundai, Nissan, Chrysler, Honda, General Motors, and select BMW, Audi, Volkswagen, and Volvo vehicles. Meets or exceeds industry and regulatory standards. Compatible with vehicle systems using 315/415 MHz. Capable of Ultra-Long Range (40 meters/130 feet) frequency transmission. Battery (CR2032) and Emergency Blade not included. One-year limited warranty.

• Autel lKEY is a universal programmable smart key that can be programmed to replace more than 700 vehicles
• Extensive IMMO Key programming coverage (90% by OBD) includes BMW, Volkswagen, Toyota, Honda, General Motors and so on.
• Use the KM100 tablet to program the lKEY for supported vehicles in as little as a minute.
• Key Renewal: Supporting 36 Vehicle Makes

These are brand new high-quality hands-free proximity replacements. Our key fob is engineered with high security functionality. They can replace your lost or broken remote key quickly and easily.

Remote Safety Feature

Unlock your car doors quickly and get in your car much faster than you could with the Autel lkey. The Remote Keyless Entry (RKE) is built in with a long-range antenna to transmit signals to the vehicle. The car remains off unless the right code is matched.

Simplified Operation: one-click get to IMMO learning directly after the key generated.

Universally Applicable Autel lKEY

Autel MaxiIM KM100 car key programmer can set the Autel lKEY as a smart key replacement for more than 700 US, EU, Asian vehicles.

High-Efficient Key Generation: Use the KM100 tablet to program the lKEY for supported vehicles only in 60 seconds. Efficiency increased by 50%+.

Key Making Process

Features

• Universal Programmable IKEY Smart Key
• 2-7 buttons
• Program with KM100 Tablet
• Battery (CR2032) and Emergency Blade not included
• 1-year limited warranty

Autel MaxiIM IKEY Comparison Chart

PART NUMBER	STYLE	BUTTONS	LOCK/ UNLOCK	TRUNK	PANIC	REMOTE START	SLIDING DOORS	AIR SUSPENTION	CABIN PRE-CONDITION	CHARGE LID	CONVERTABLE OPENER	HATCH	HATCH GLASS	BUY NOW
IKEYBW003AL	BMW-style	3	•	•										Click
IKEYBW004AL	BMW-style	4	•	•	•									Click
IKEYOL004AL	Buick-style	4	•	•	•									Click
IKEYOL005AL	Buick-style	5	•	•	•	•								Click
IKEYVW003AL	Volkswagen-style	3	•	•										Click
IKEYCL004AL	Chrysler-, Dodge-style	4	•		•	•								Click
IKEYCL005AL	Chrysler-, Dodge-style	5	•	•	•	•								Click
IKEYGM004AL	GM-, Cadillac-style	4	•	•	•									Click
IKEYGM005AL	GM-, Cadillac-style	5	•	•	•	•								Click
IKEYHD004BL	Honda-style	4	•	•	•									Click
IKEYHD004AL	Honda-style	4	•				•							Click
IKEYHD005AL	Honda-style	5	•	•	•	•								Click
IKEYHY003AL	Hyundai-style	3	•	•										Click
IKEYHY004AL	Hyundai-style	4	•	•	•									Click
IKEYNS003AL	Nissan-style	4	•	•										Click
IKEYNS004AL	Nissan-style	4	•	•	•									Click
IKEYNS005AL	Nissan-style	5	•	•	•	•								Click

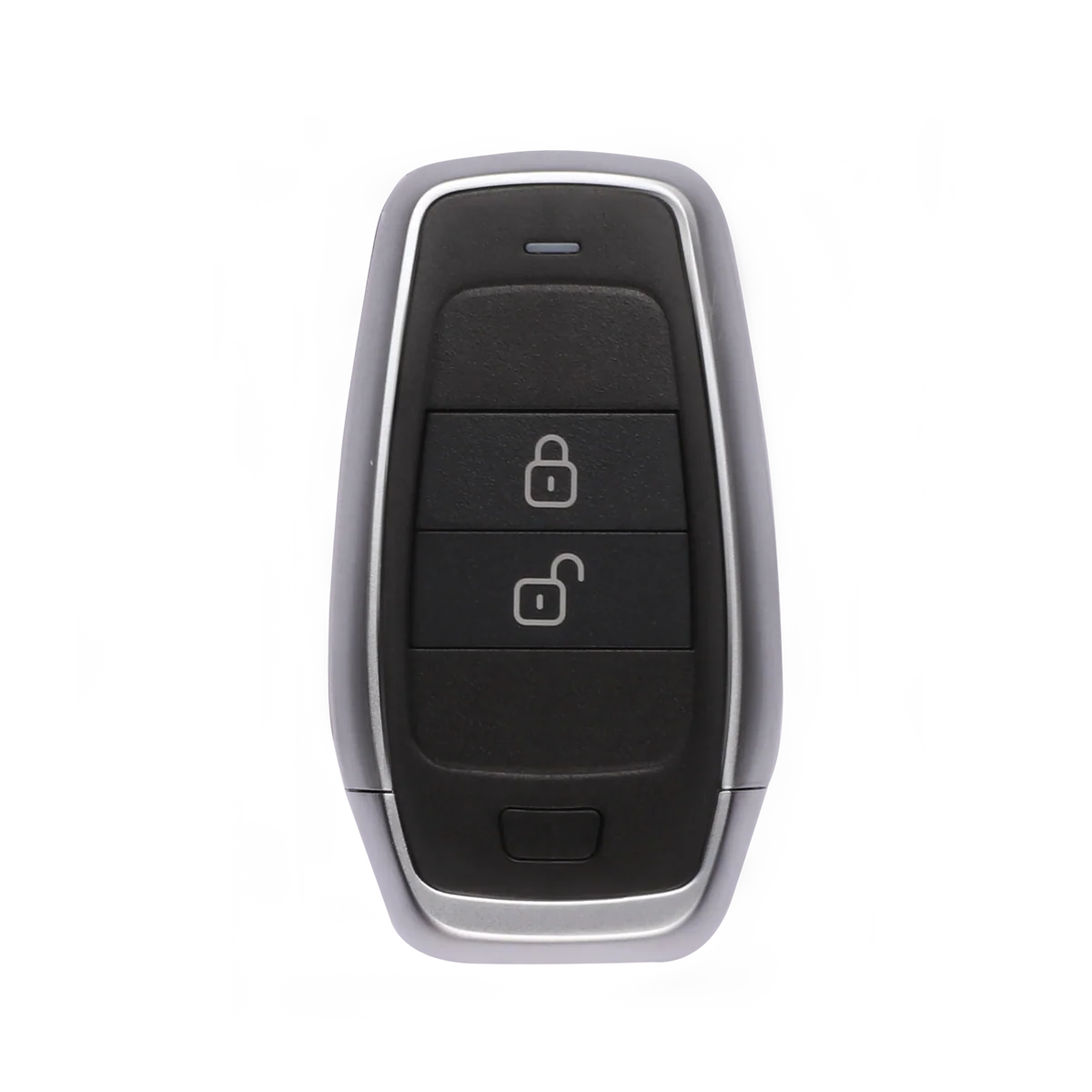

IKEYAT002AL	STANDARD	2	•											Click
IKEYAT003AL	STANDARD	3	•		•									Click
IKEYAT003BL	STANDARD	3	•	•										Click
IKEYAT004AL	STANDARD	4	•		•			•						Click
IKEYAT004BL	STANDARD	4	•		•	•								Click
IKEYAT004CL	STANDARD	4	•	•	•									Click
IKEYAT004DL	STANDARD	4	•		•									Click
IKEYAT004EL	STANDARD	4	•	•		•								Click
IKEYAT005AL	STANDARD	5	•		•	•		•						Click
IKEYAT005BL	STANDARD	5	•	•	•	•								Click

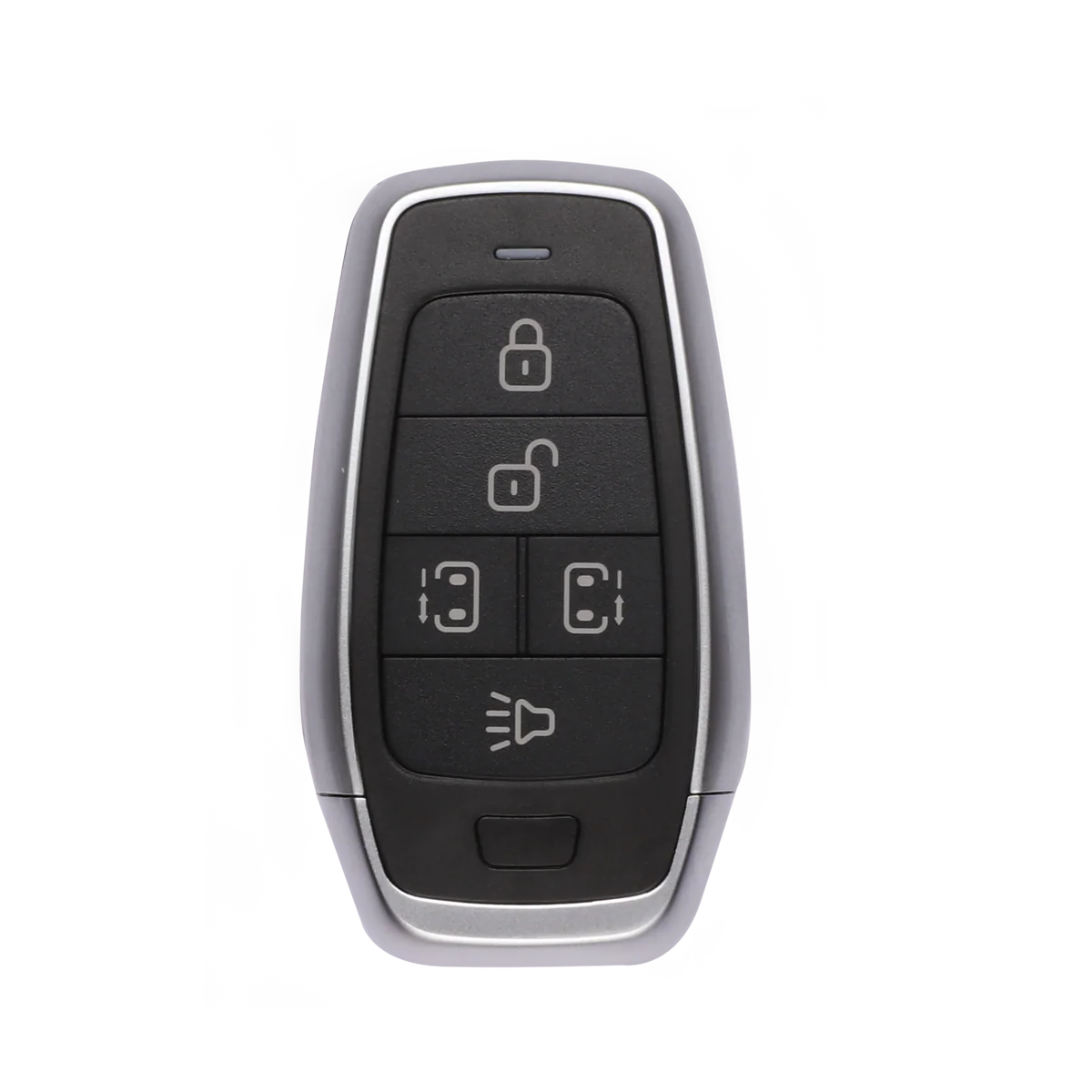

IKEYAT005CL	STANDARD	5	•		•		•							Click
IKEYAT005DL	STANDARD	5	•		•				•	•				Click
IKEYAT006AL	STANDARD	6	•	•	•	•	•							Click
IKEYAT006BL	STANDARD	6	•	•	•		•							Click

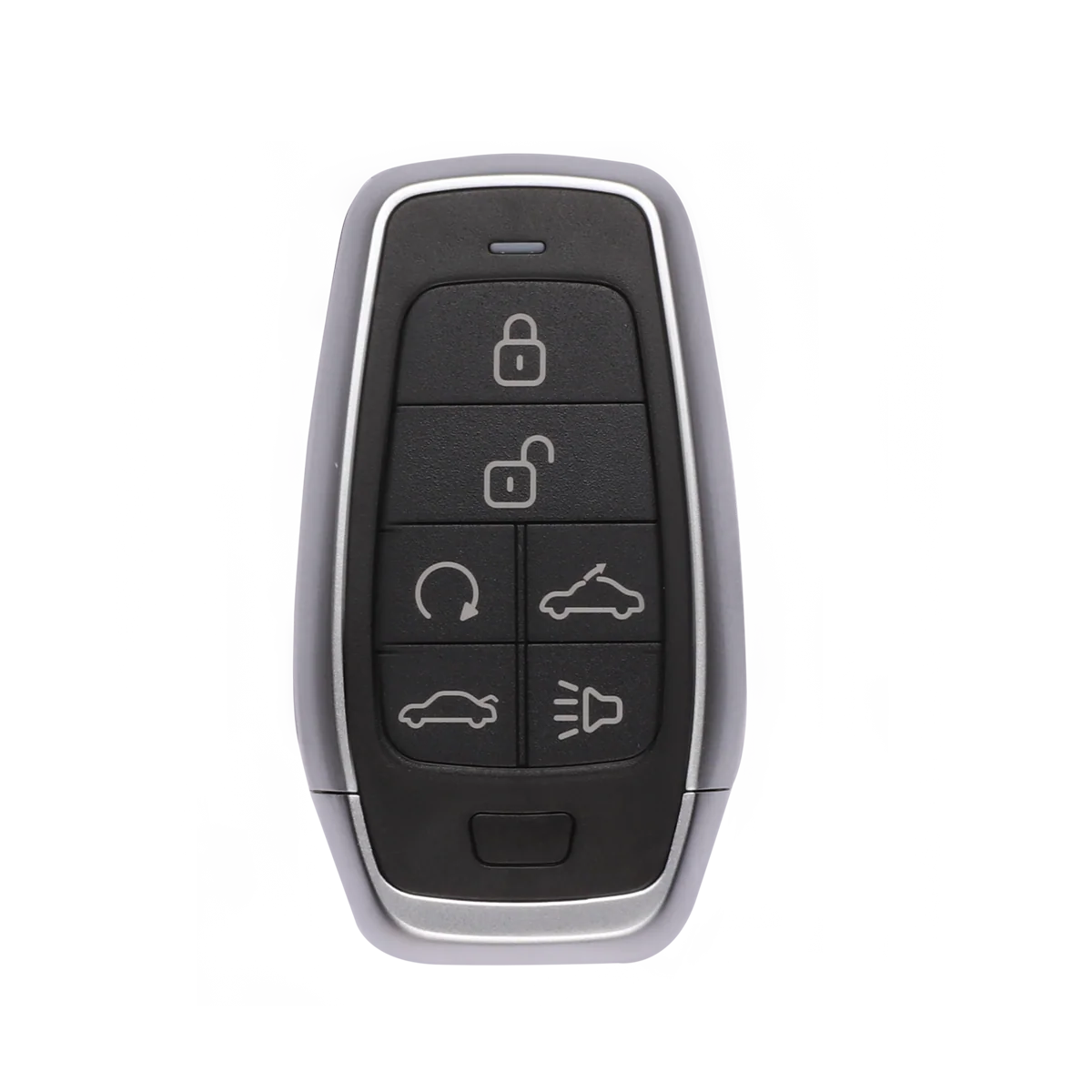

IKEYAT006CL	STANDARD	6	•	•	•	•					•			Click

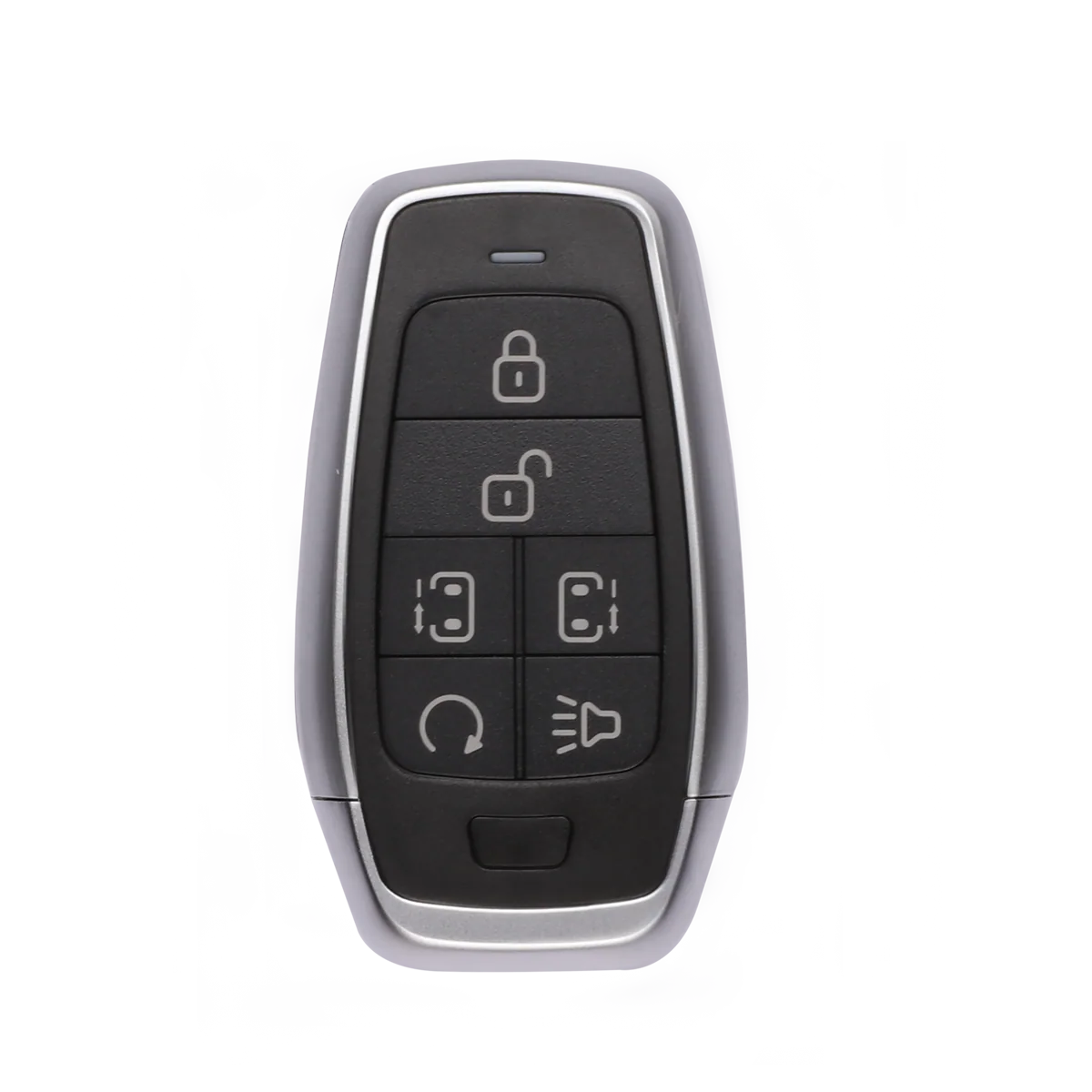

IKEYAT006DL	STANDARD	6	•		•	•	•							Click

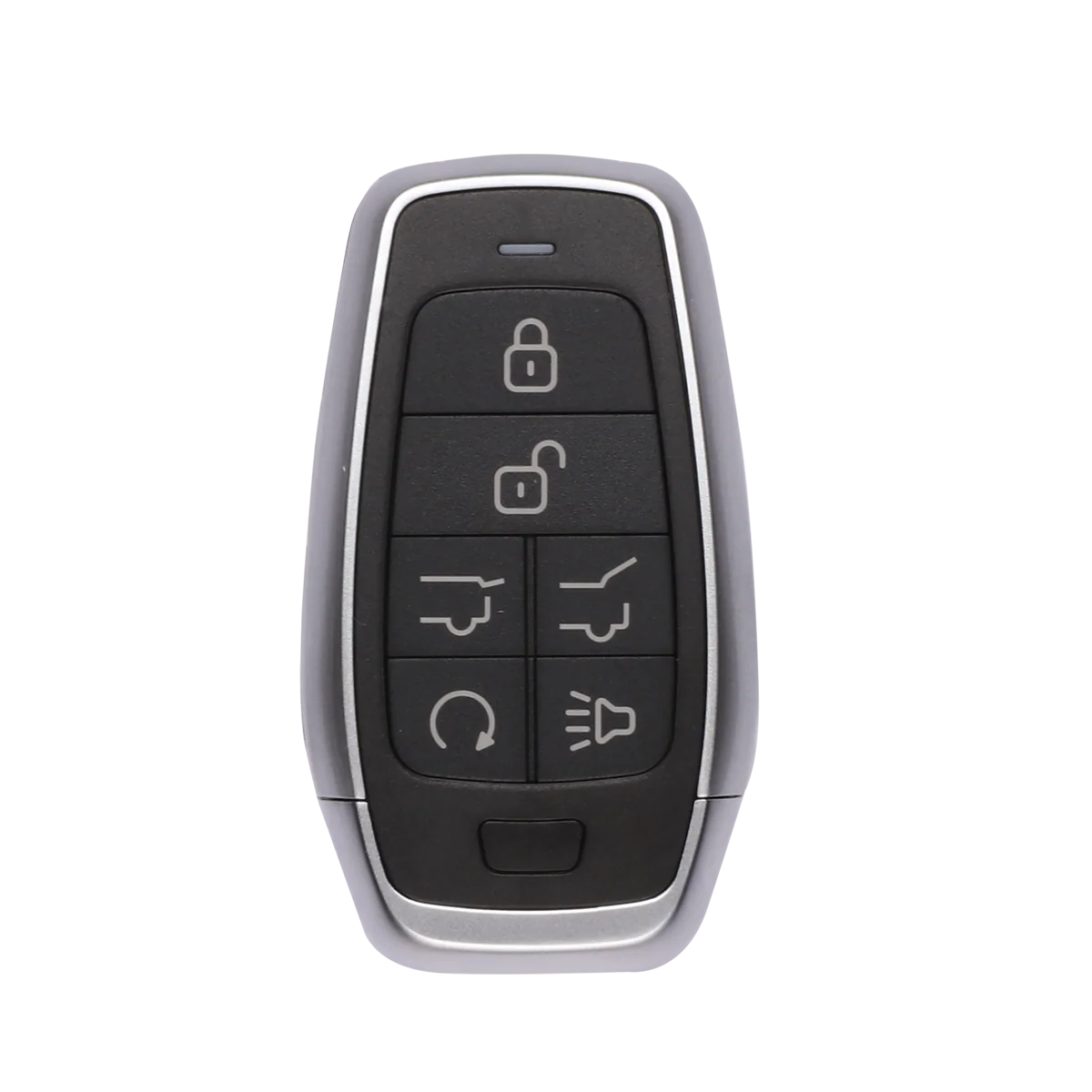

IKEYAT006EL	STANDARD	6	•		•	•						•	•	Click

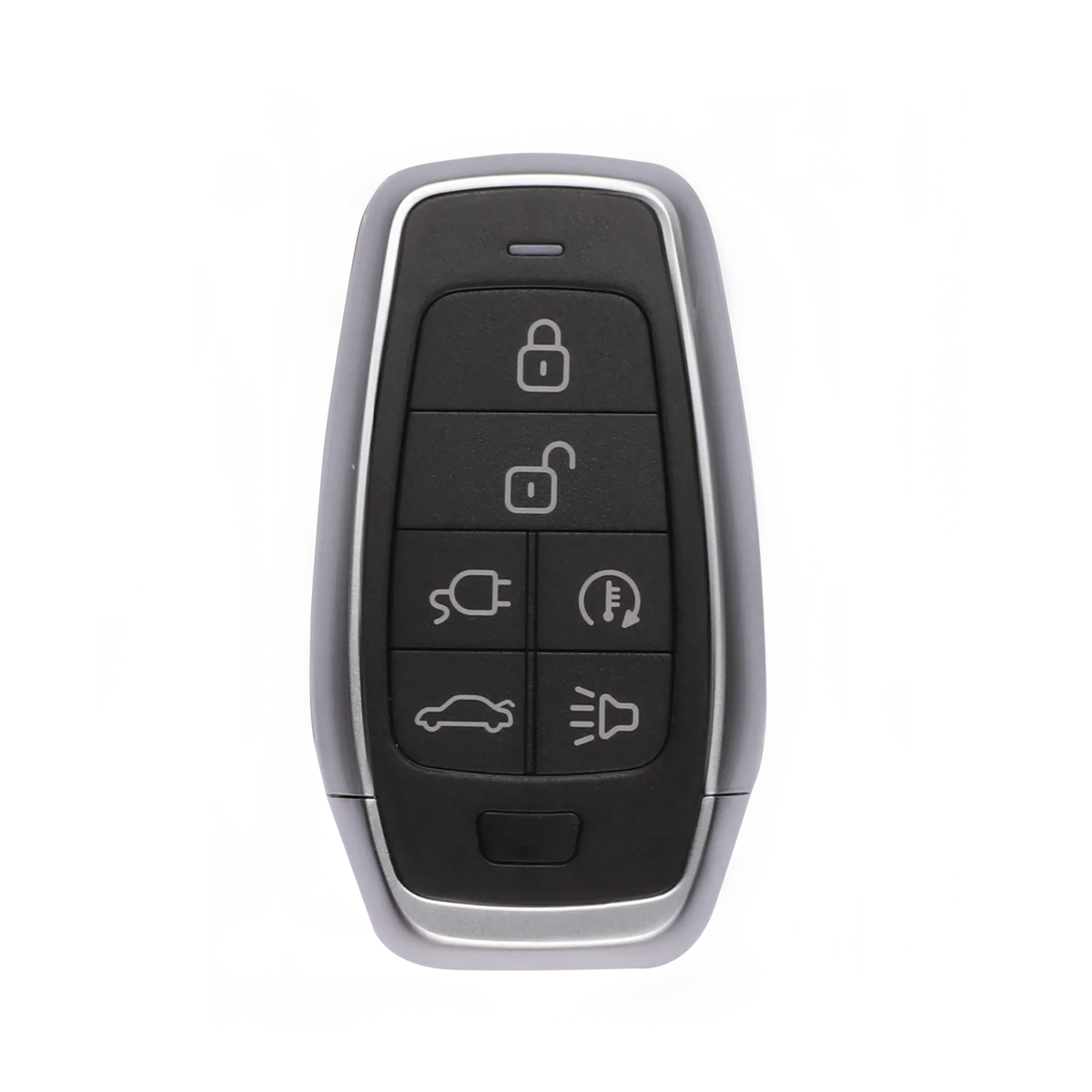

IKEYAT006FL	STANDARD	6	•	•	•				•	•				Click

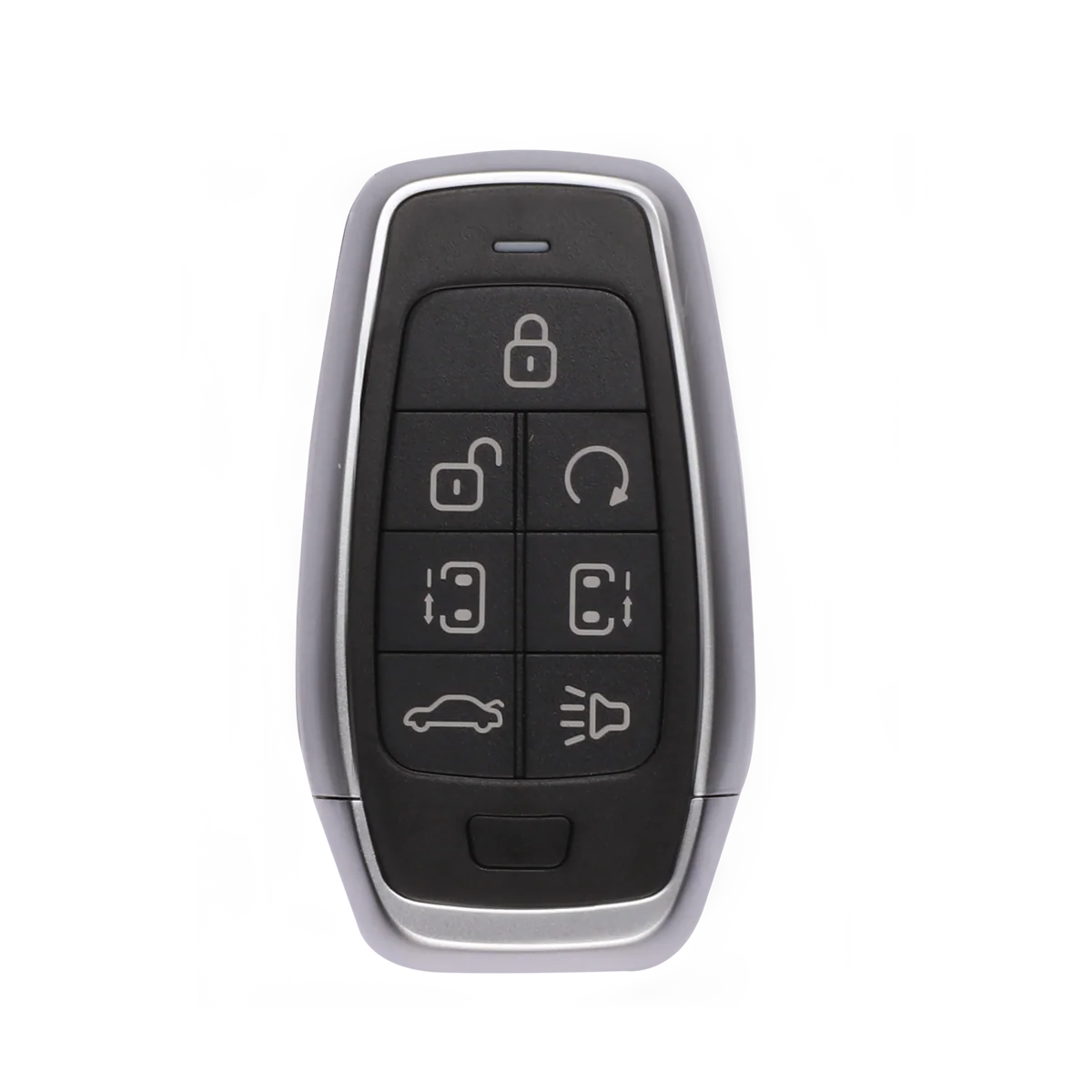

IKEYAT007AL	STANDARD	7	•	•	•	•	•							Click
