Autel Tesla Diagnostic Cable for Tesla S & Tesla X New Energy Models

Autel diagnostic cables for Tesla S & Tesla X vehicle models, enables Autel MaxiSys MS909, MS919, or MS Ultra tablets to connect with Tesla S & Tesla X vehicles so as to activate factory mode and perform system diagnoses.

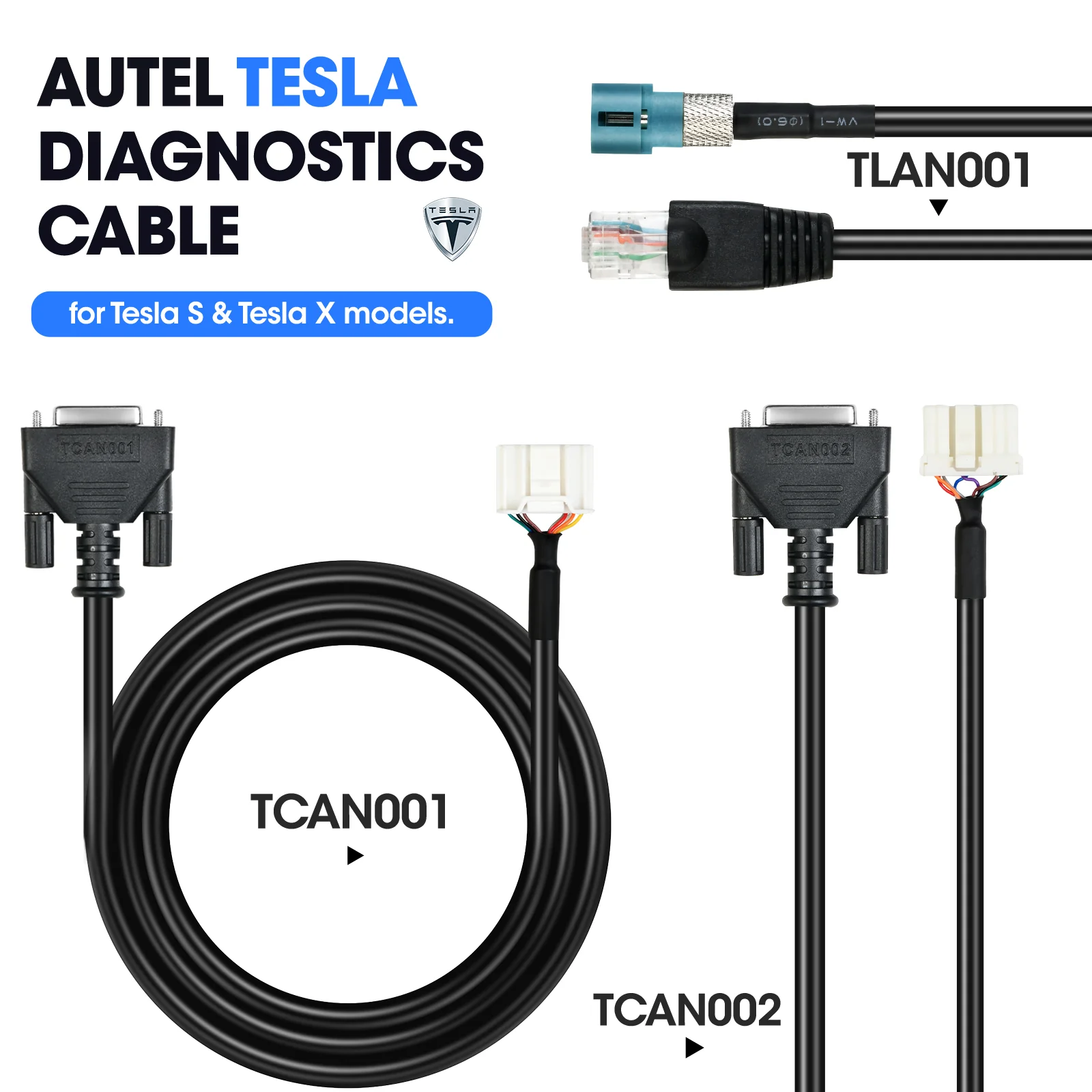

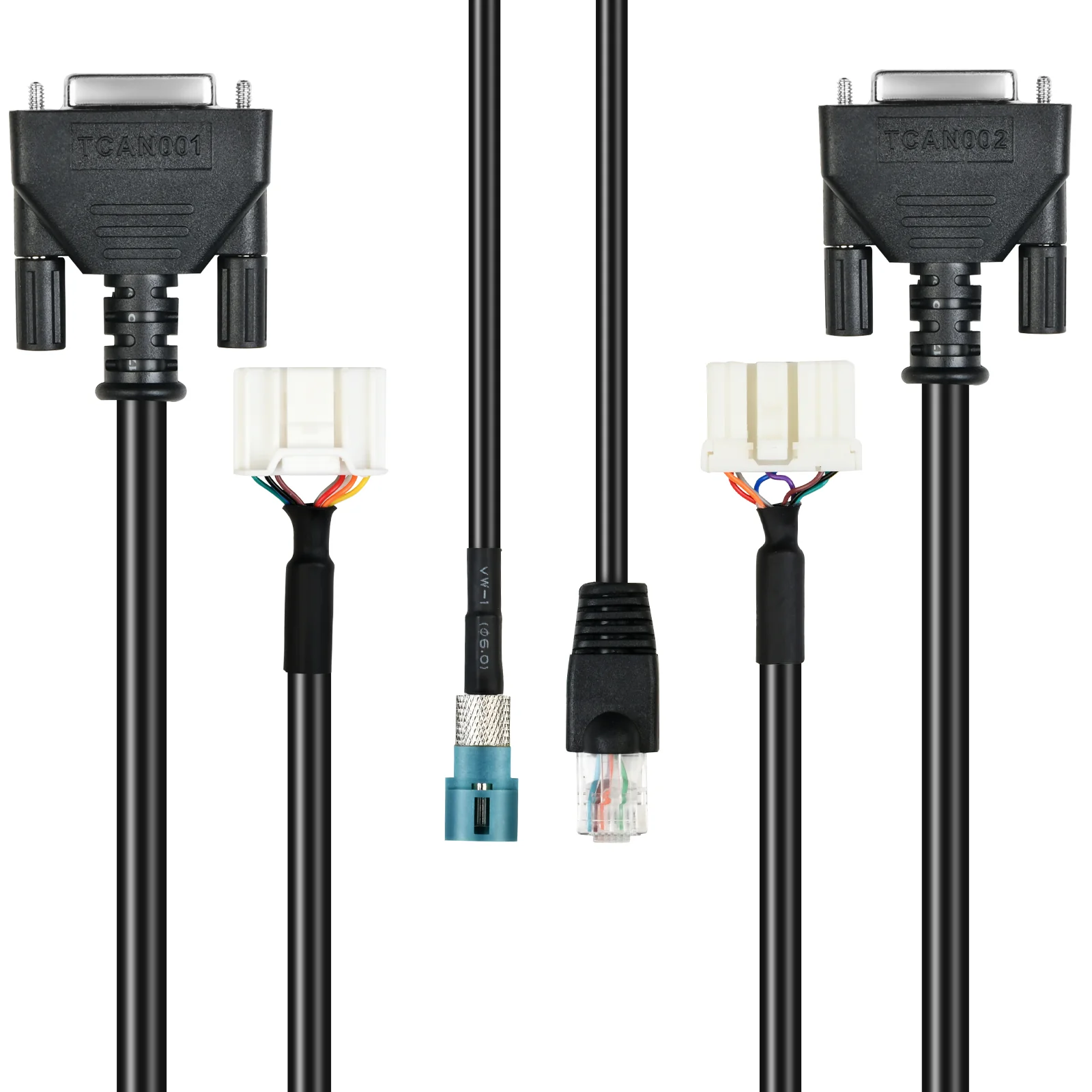

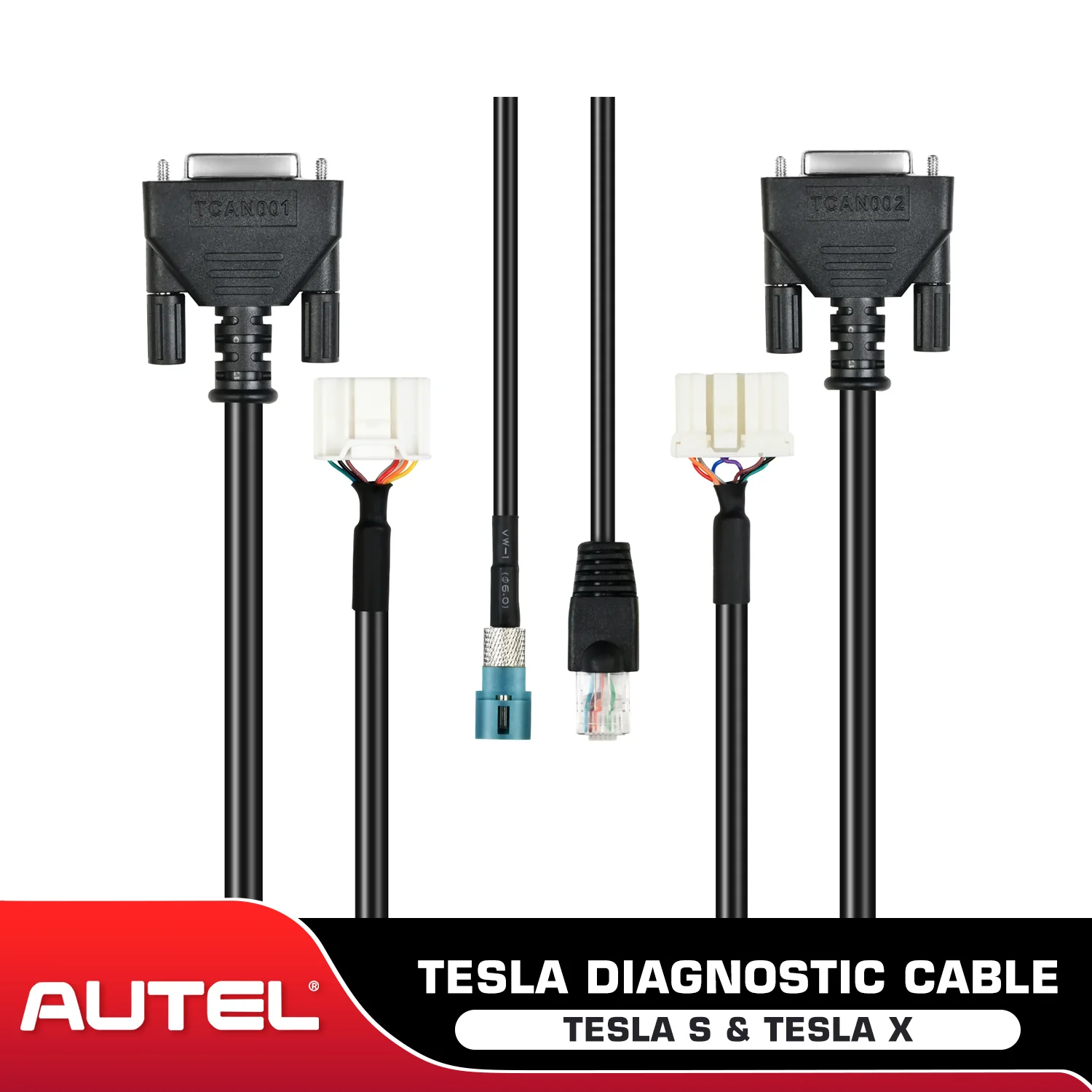

Autel Tesla cable set includes three cables: TLAN001, TCAN001 and TCAN002.

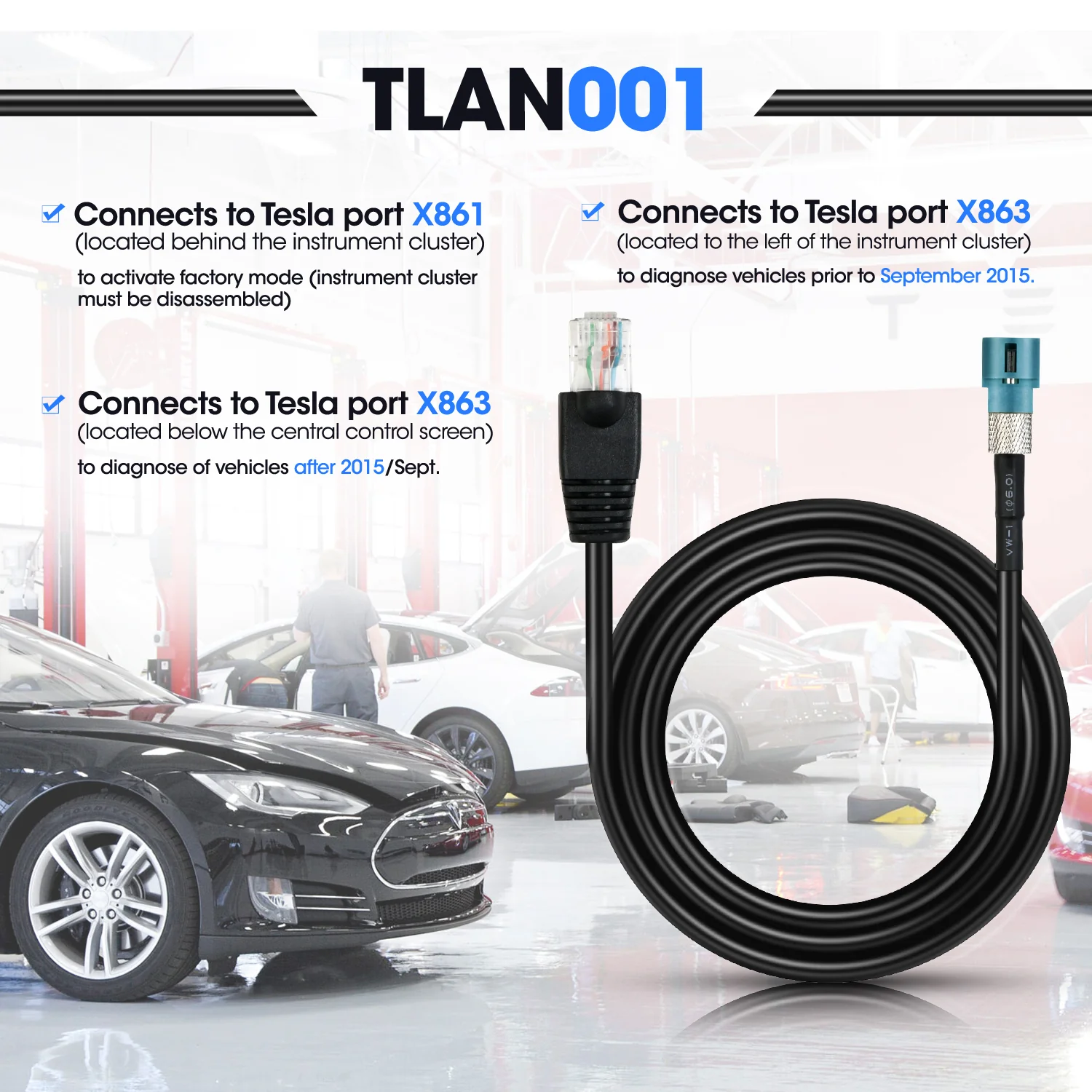

TLAN001: Connect with Tesla Port X861 X863

• Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
• Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
• Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

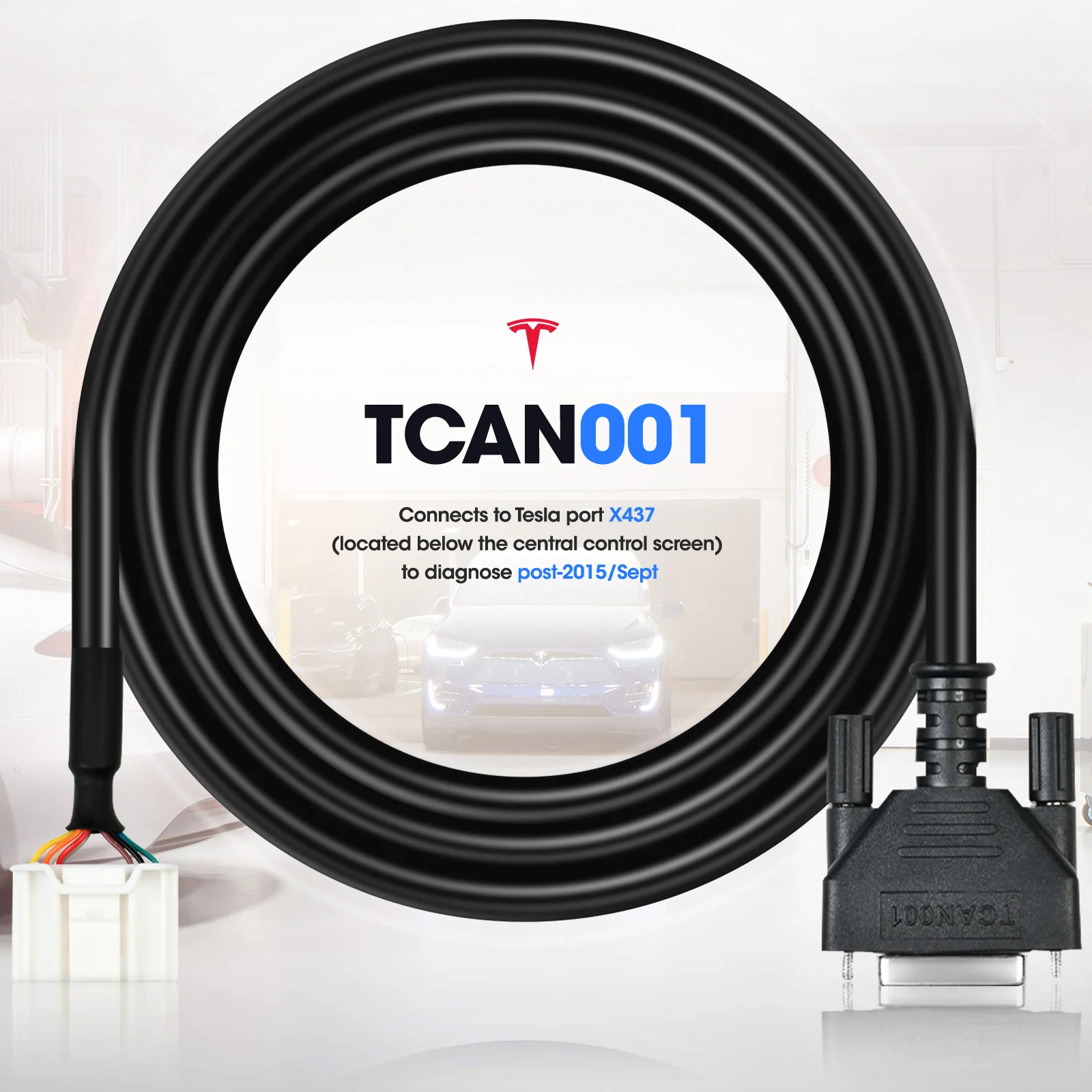

TCAN001: Connect with Tesla Port X437

• Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

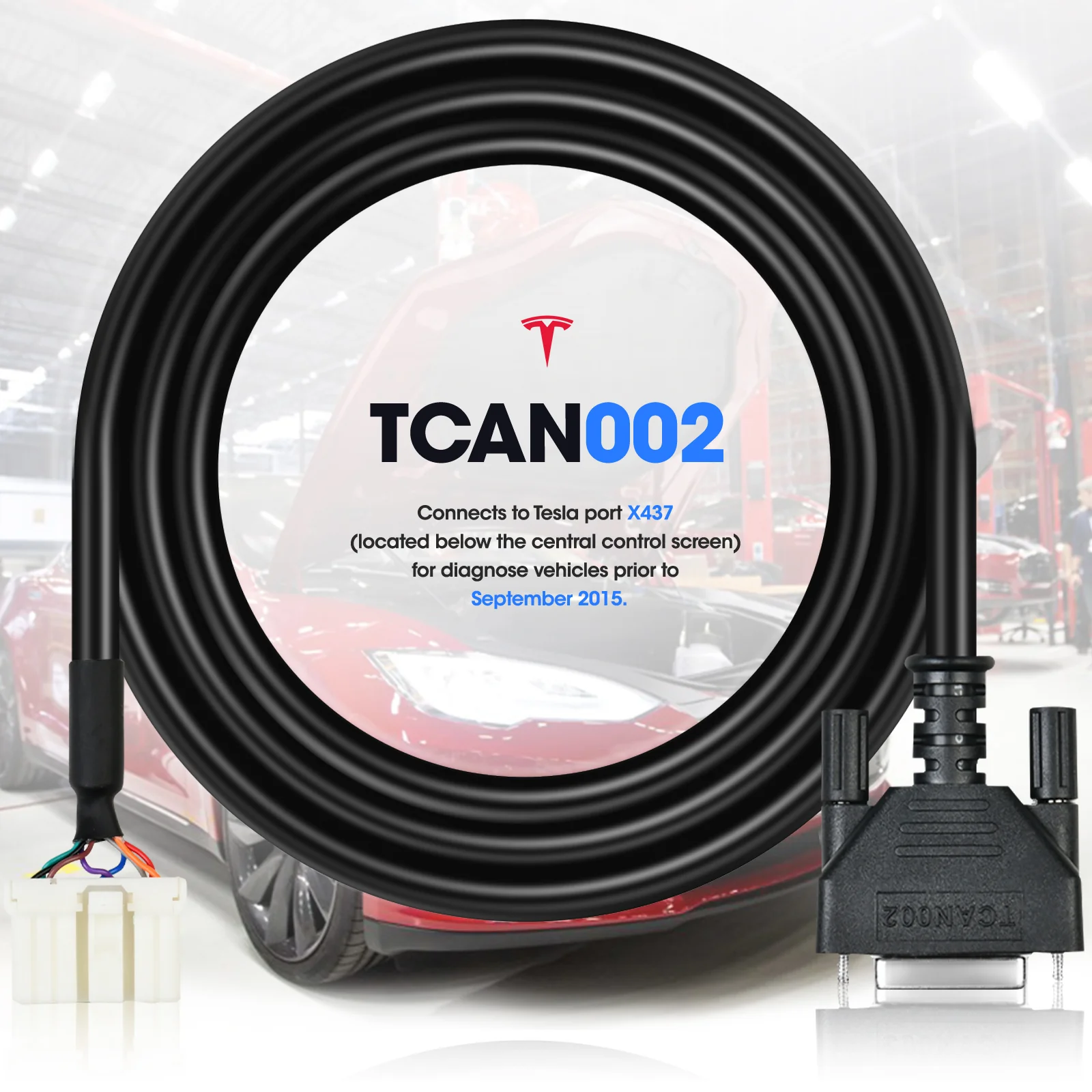

TCAN002: Connect with Tesla Port X437

• Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.

Work with Autel Scanner That Supports Tesla Diagnose

Currently, the following Autel scanners support Tesla vehicle diagnostics: MS908S PRO, MS908S PRO II, MK908 PRO II, Elite, Elite II, Elite II PRO, MS909, MS919, Ultra, Ultra Lite S, MS909EV, Ultra EV. If you have one of the above devices, you may need to use these Tesla diagnostic cables to diagnose your car.

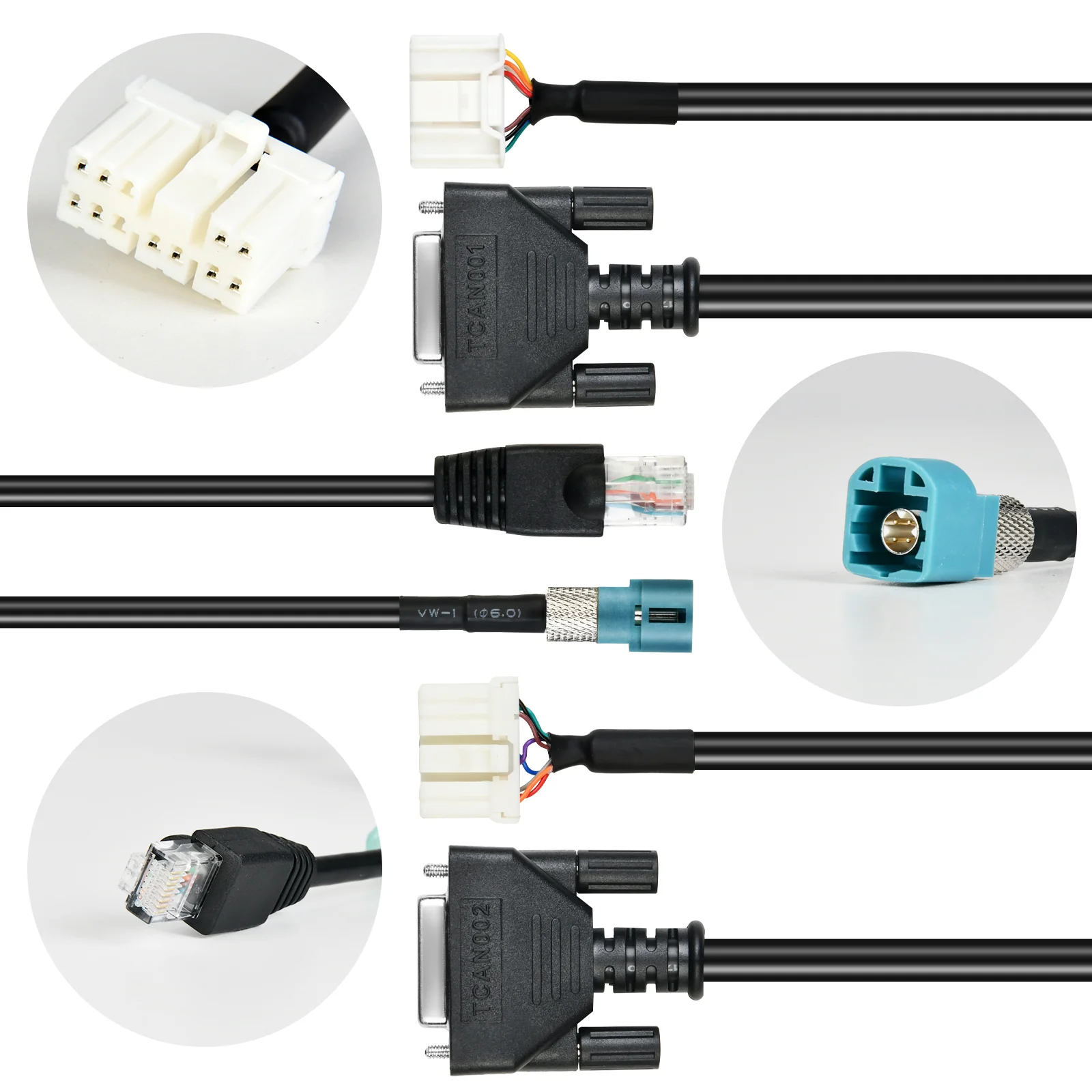

Tesla Cable Display
