Note ! ! !

The Autel MaxiIM IM608 Key Programmer has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel MaxiIM IM608 Pro II/ IM608S II.

Autel MaxiIM IM608 Pro II/ IM608S II 👉 https://www.diagmart.com/products/autel-maxiim-im608-pro-ii-im608s-ii

[discontinued]

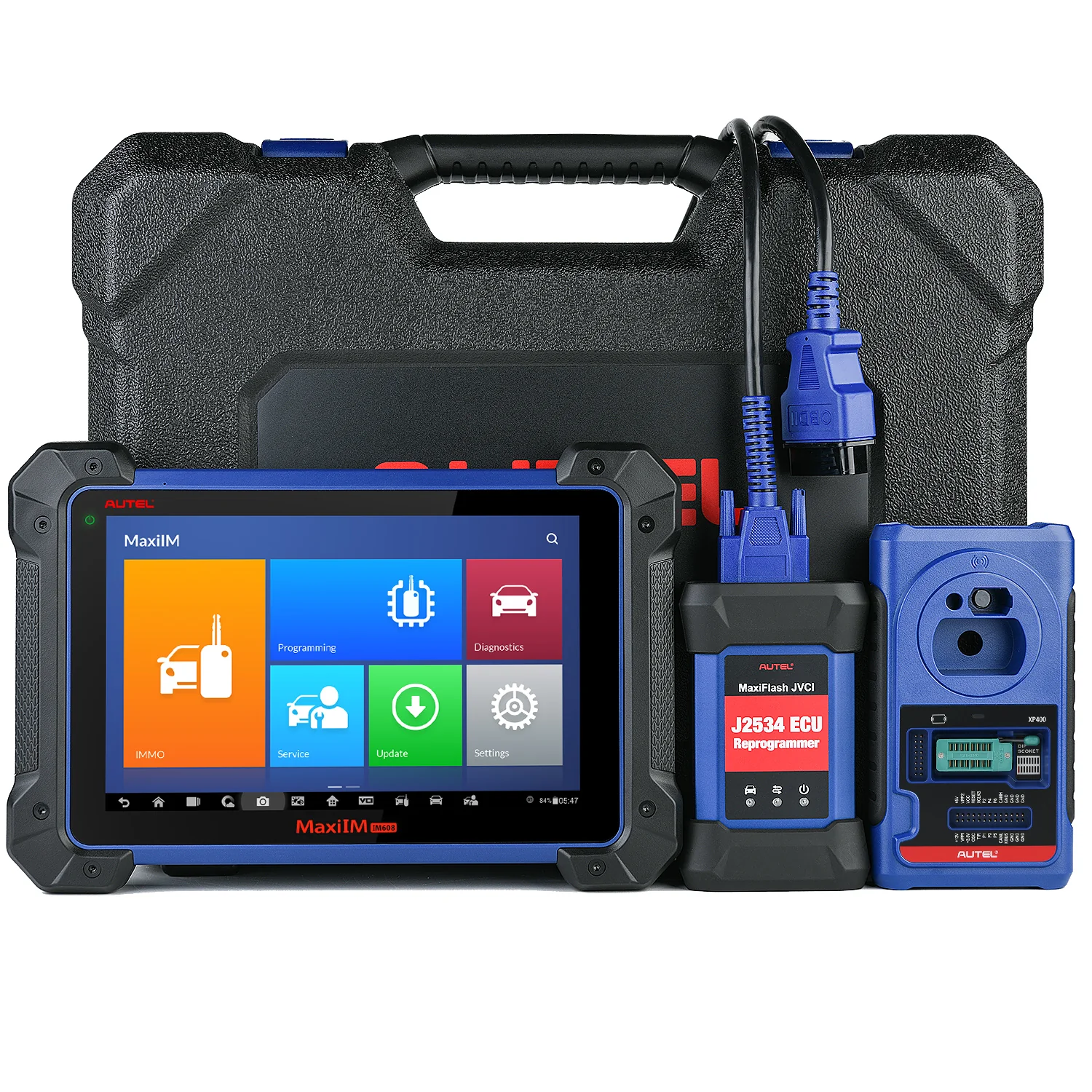

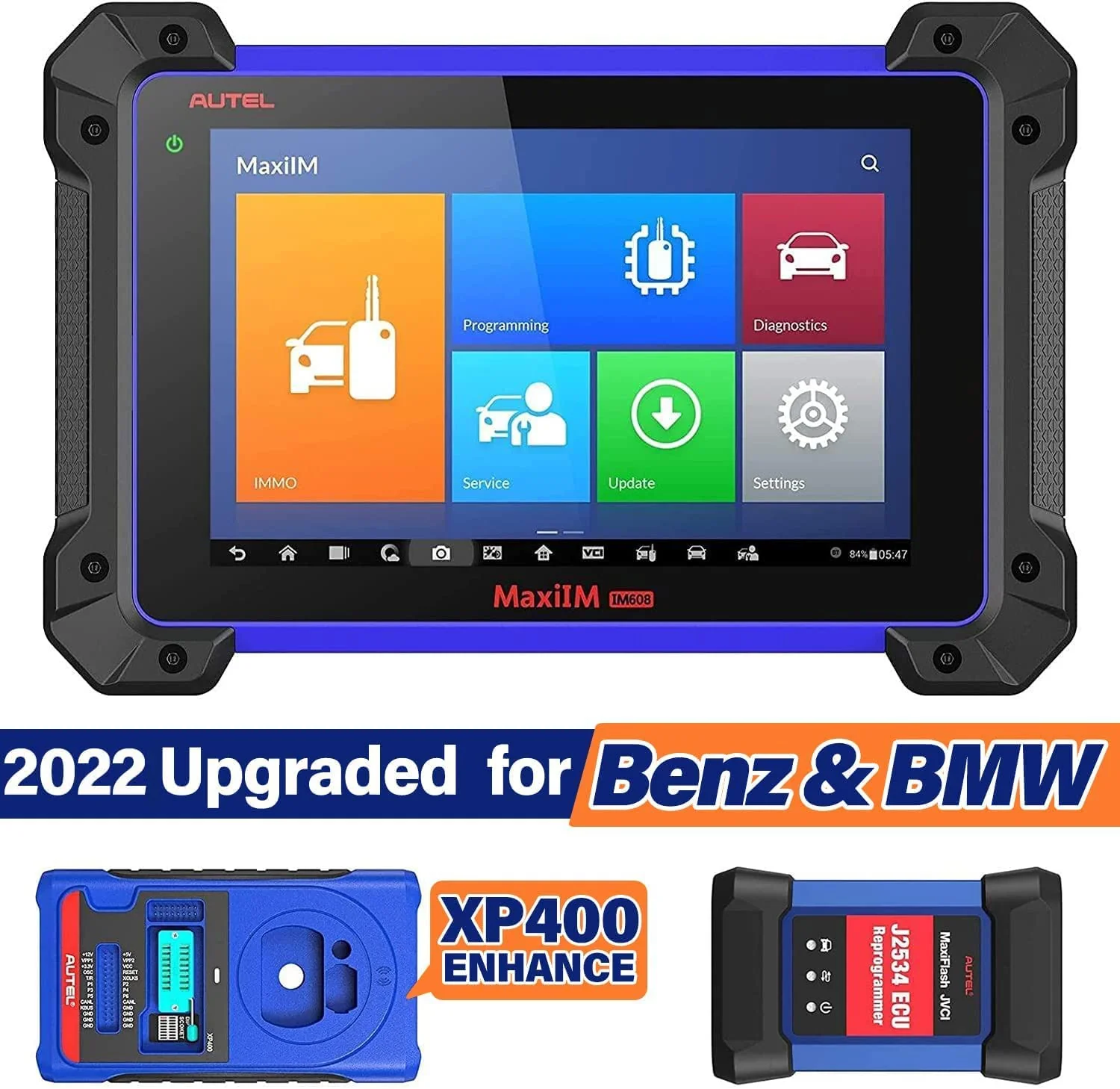

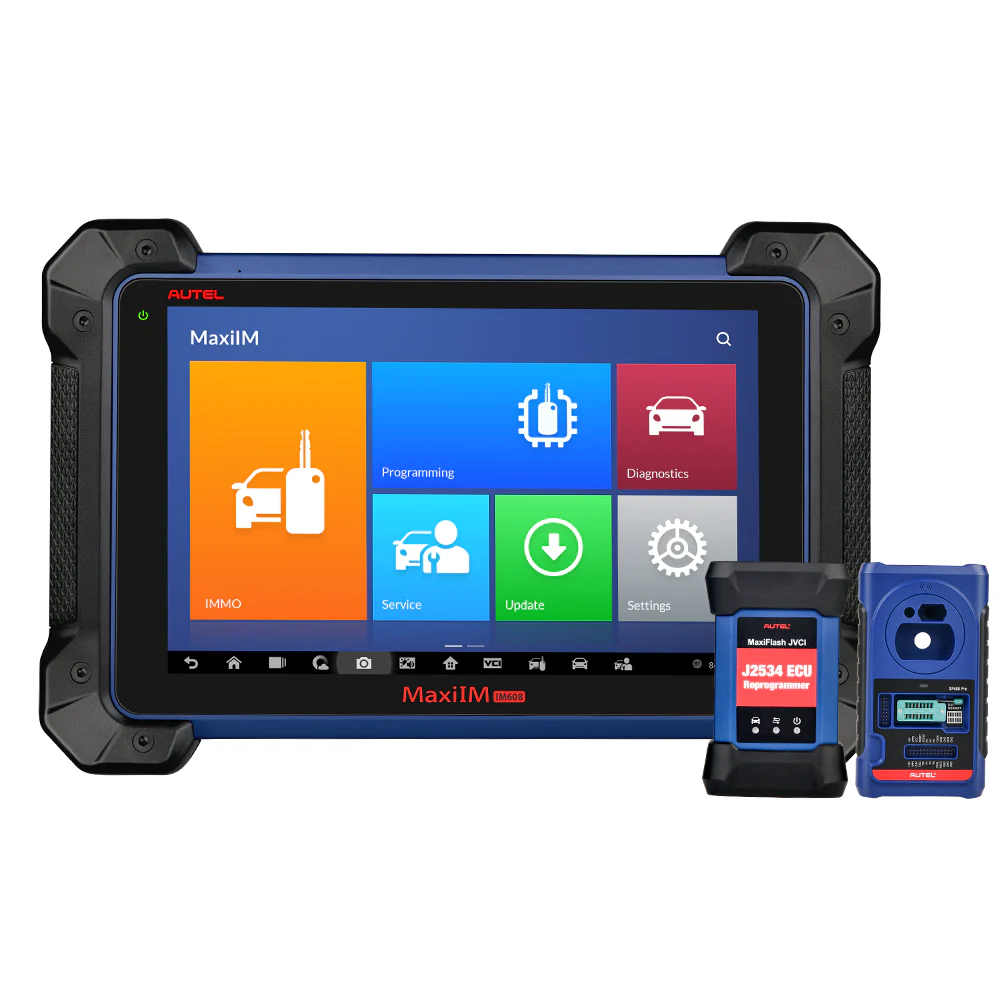

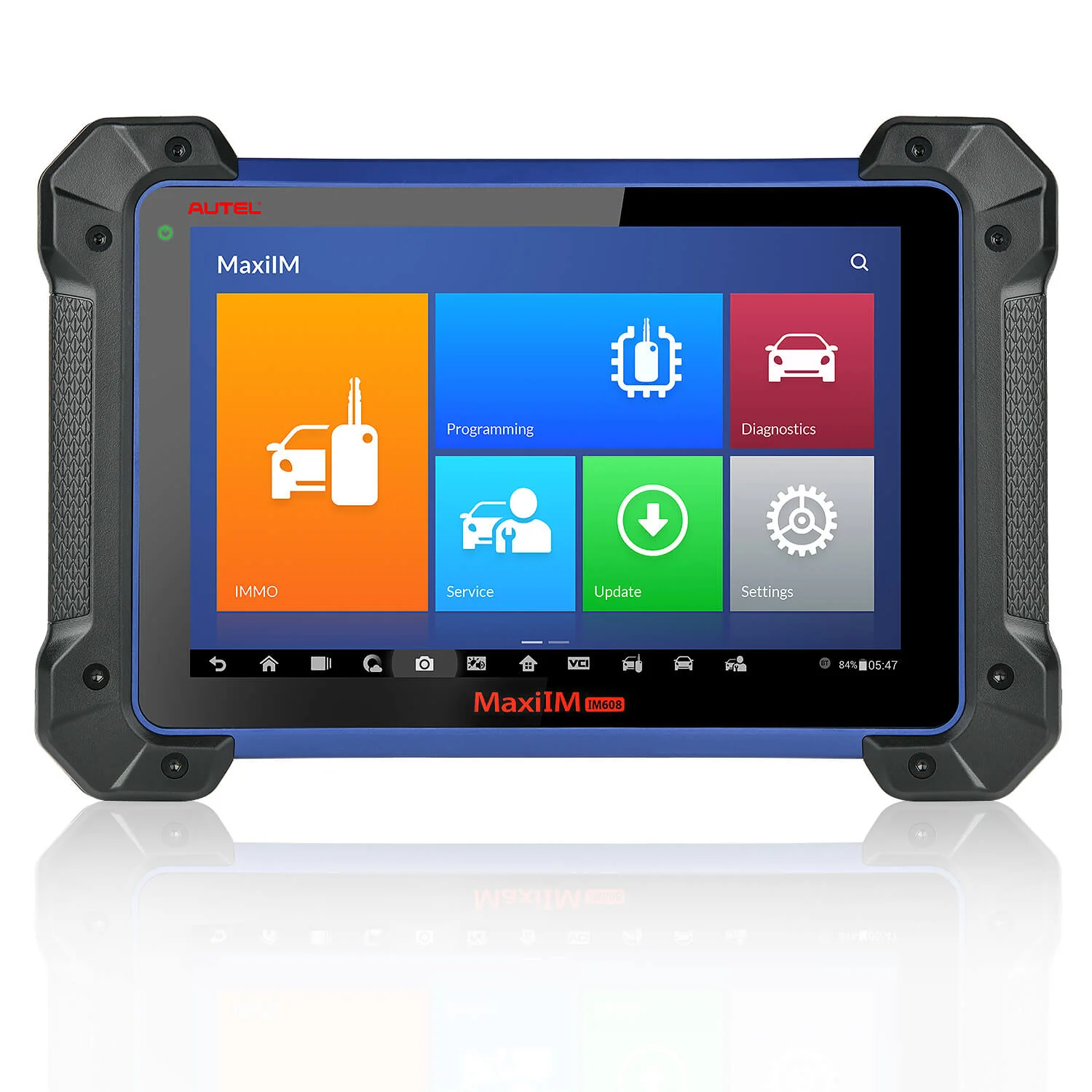

Autel MaxiIM IM608

Autel MaxiIM IM608 is the most advanced and comprehensive all-in-one car key programming and diagnostic tool that integrates professional key programming, all system diagnostic, bi-directional control and 20+ maintenance services. Equipped with XP400 Key Programmer and MaxiFlash J-2534 VCI, it offers complete IMMO coverage and programming functions and works efficiently.

This all-in-one professional car diagnostic tool comes with everything you or an entire automotive shop needs. It can handle everything from key programming to maintenance and systems testing, and it is capable of quickly diagnosing all modules for the majority of the makes and models on the market.

Autel IM608 key programmer is the unprecedented key programming and diagnostic tool that you ever wanted.

Top 8 Reasons to Buy Autel MaxiIM IM608:

1. NO IP Blocking - IM608 can be used everywhere.
2. Multi-Language Supported - Default Language is English; it can be switched to German, Swedish, Italian, Portuguese, French, etc.
3. Able to Upgrade - IM608 can be upgraded to IM608 Pro by combining with XP400 Pro
4. Professional IMMO & Key Programming Tool - IM608 is a comprehensive immobilizer and key programming tool which is ideal for auto technicians and locksmiths
5. Advanced Autel Diagnostic Tablet - Powerful combination of advanced key programming/ all system diagnostics/ advanced 20+ maintenance services
6. Comes with XP400 - It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM Reading
7. Adapt to Many situations - Smart Mode for guided and automated key learning, Expert Mode for advanced key learning
8. Bluetooth Wireless Connection - With the BT working range of 210 feet(70m), you don't have to stay in the car.

Autel IM608 Advantages:

Autel IM608 Advanced IMMO & Key Programming

Autel IM608 comes with the most advanced IMMO and key programming function, which brings you great convenience. With XP400 programmer, Autel IM608 can perform various key programming functions including read & write EEPROM, read & write transponder, Read & Write MCU, Read & Write IMMO ECU, Read & Write MC9S12 Encryption Chip and etc.

The MaxiIM IM608 provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions. With unique Smart Mode, IM608 recognizes vehicle’s IMMO info automatically, matches IMMO process, and offers detailed help to people without basic knowledge finish key learning. Expert mode is mainly for advanced key learning. The smart mode is of particular value for automotive shops that need to train new employees in diagnostics.

Key Programming Functions

Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:

1. DC Port – provides 12V DC power supply.
2. USB Port – provides data communication and 5V DC power supply.
3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction Area
6. Vehicle Key Slot – holds the vehicle key.
7. Transponder Slot – holds the transponder.
8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
10. Status LED – indicates the current operating status.
11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

Complete IMMO Functions

--- Protect Your Car From Being Stolen

Autel IM608 comes with complete IMMO functions like reading PIN, key learning, remote learning, key generation, all-key-lost, IMMO data backup/restore, IMMO ECU Reset/Adaptation/Refresh/Coding, Key Learning and ECU Adaptation for Benz FEM/BDC, Key Learning for BMW CAS4/3/2 key, Add Key, All-Key-Lost for VW/Audi/Skoda/Seat IMMO III/IV/V, Add Key for VW/Audi MQB(VDD & JCI), Key Learning for IMMO V A4/A5/Q5 2015+.

Autel IM608 With 20+ Maintenance Services

---Work like a Champ

Being a professional key programmer does not mean that it can't do regular car maintenance. IM608’s various functions are deep and well-suited for a variety of maintenance work.

The IM608 offers more than 20 services such as ABS auto bleed, Oil Reset, SRS, SAS, DPF, BMS, EPB, Injector Coding, Throttle, Crankshaft Position Variation Learn, etc.

If you were a driver, I believe that you already know that regular car maintenance is essential for your vehicle, keeping you safe and saving you money. If you run an automotive repair business, buying this tool is like a "buy one get one free". You won't have to buy an extra diagnostic tool.

• Oil Reset Service: It allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.
• EPB: The service is important in the maintenance of electronic braking system's safety and efficiency.
• BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
• DPF: The service specially works for the Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
• SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
• TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
• ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

Autel IM608 All System Diagnosis

--- Also a diagnostic expert

Autel IM608 features the same competence as MS908S/ Elite in terms of all system diagnosis, able to access all modules performing diagnosis over all the systems on the vehicle's ECU in order to locate fault systems and retrieve DTCs.

ECU Information -provides the retrieved ECU information in detail.

Read Codes -displays detailed information of DTC records retrieved from the vehicle control module.

Erase Codes -erases DTC records and other data from the ECM.

Live Data -retrieves and displays live data and parameters from the vehicle's ECU

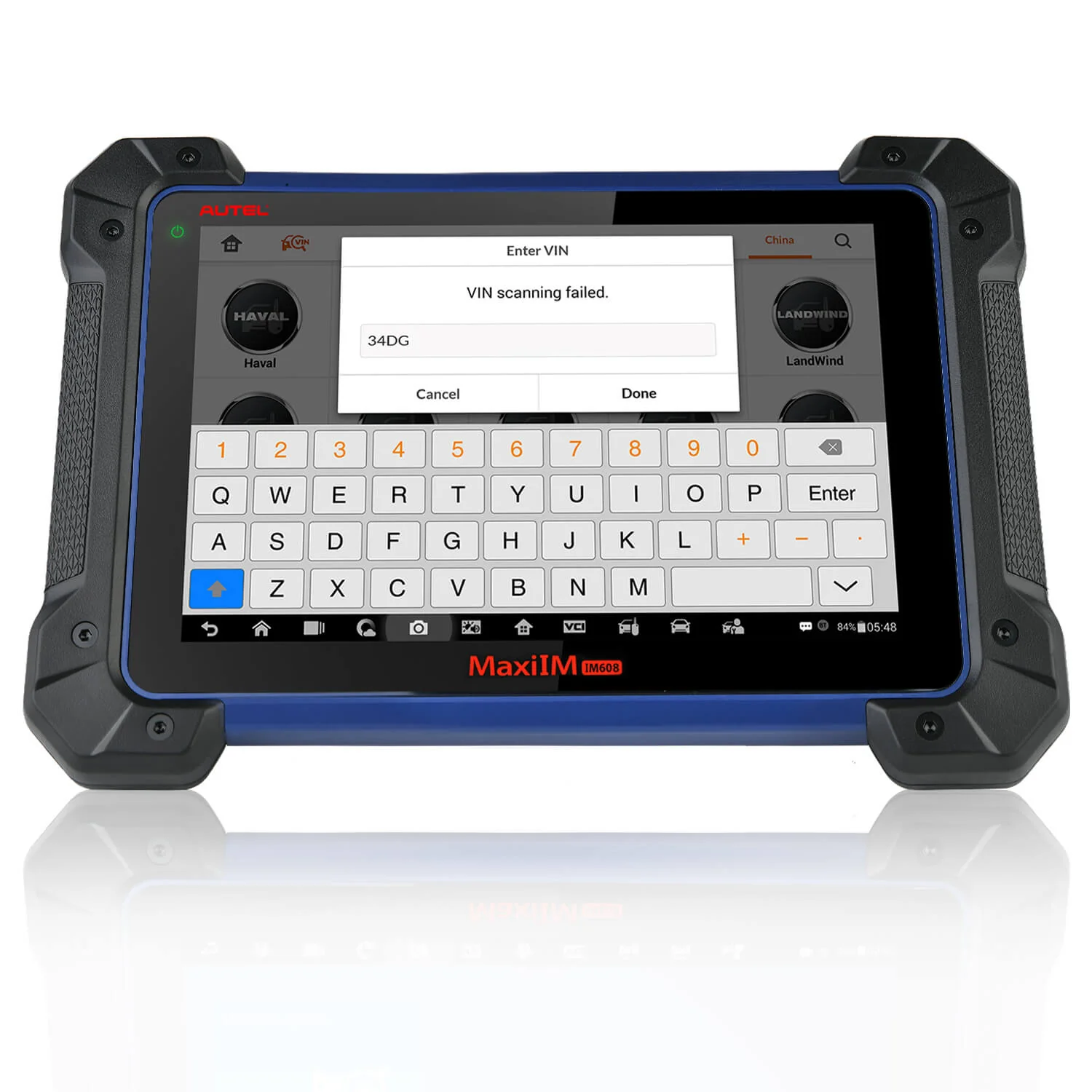

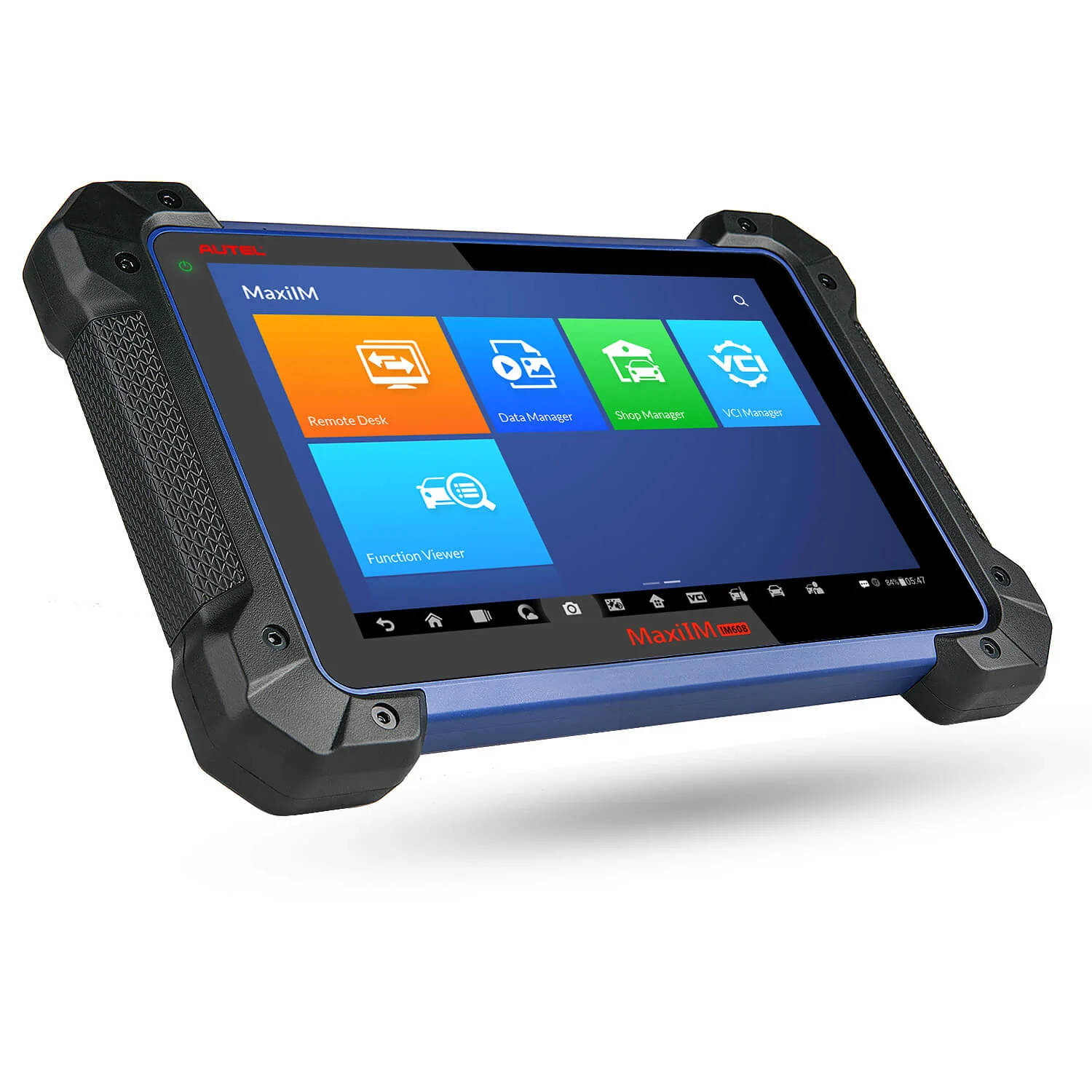

Auto VIN Scan & Shop Manager

--- Check Vehicle Info

IM608 diagnostic scanner computer incorporates the latest Auto VIN technology that allows technicians or repairmen to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

Shop manager allows you to well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

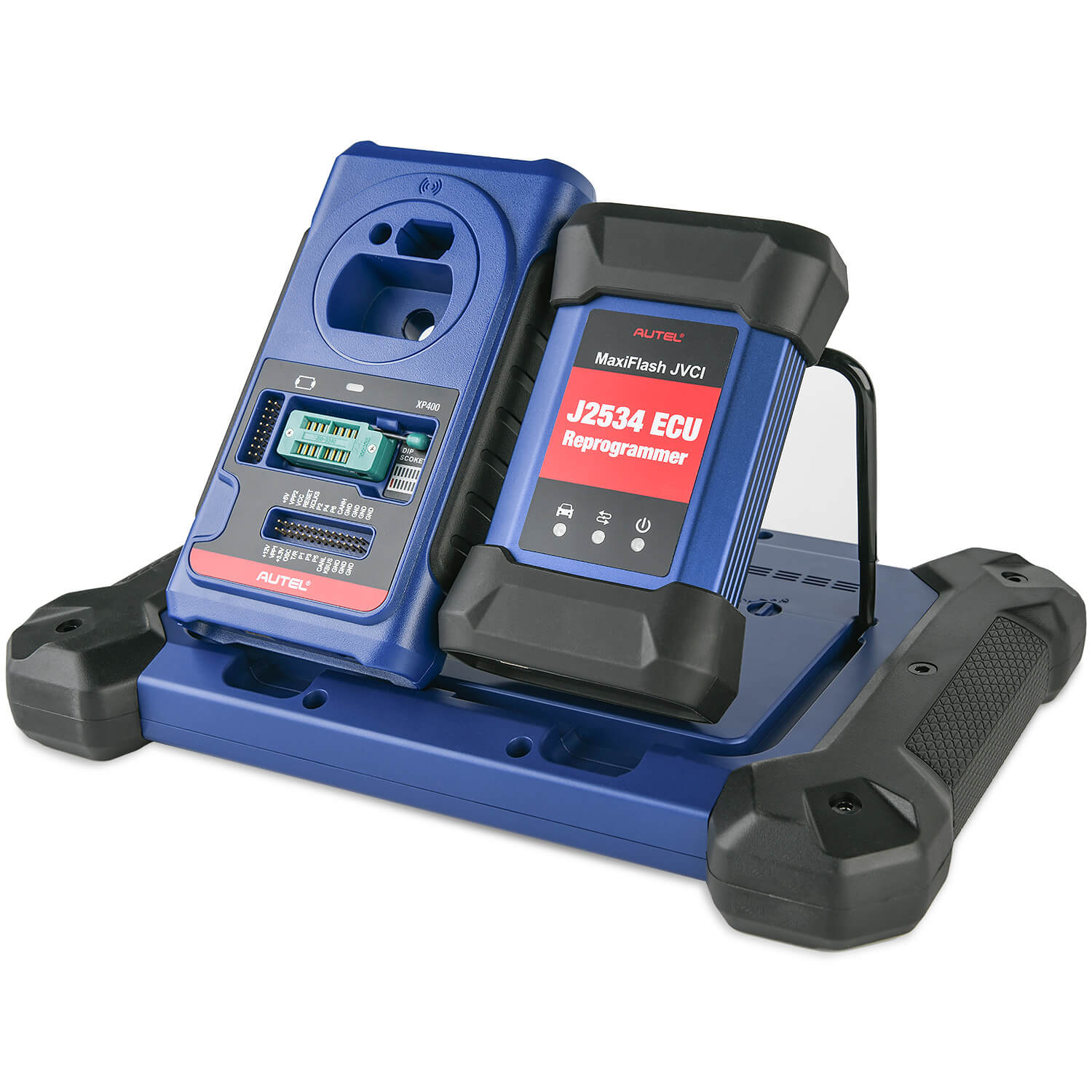

XP400 Key Programmer

--- Car key programming assistant

The XP400 is specially designed to read transponder data (including Mercedes Benz infrared smart key), clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tools and PC that are loaded with programmer software, the XP400 can read/write transponder data quickly and accurately.

1. PC Supported
2. MCU / EEPROM Chip Read / Write
3. ECU Read / Write
4. MC9S12 Encrypted Chip Read / Write
5. Key Reading / Writing
6. Mercedes Infrared Key Reading / Writing
7. Finding the Control Frequency
8. IC Card Reading / Writing

Autel MaxiIM IM608 Vehicle Coverage:

Autel MaxiIM IM608 supports more than 80 US, Asian and European makes and models.
for Audi: A1, A3, A4, A5, A6, RS4, B6, B7, RS5, RS6, A4 Allroad, A8, S8, Q3, RSQ3, Q5, Q7, R8, TT
for Seat: Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii, Toledo
for Skoda: Citigo, Fabia India, Fabia, Kamiq, Karoq, Octavia, Rapid India, Rapid, Roomster, Superb, Yeti
for VW: Amarok, Arteon, Atlas, Beetle, Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/Multivan, up, UP!/cross UP!
for Fiat: 500, 500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio
etc...

Supports automotive protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, HighSpeed, MiddleSpeed, LowSpeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN.

Autel IM608 Features:

• Samsung Exynos 5260(2GB ROM)

• 10.1”1024x768 LCD capacitive touchscreen

• Internal reliable 64GB Memory

• Android Operating System for fast boot-up and multitasking

• Powerful combination of key programming/all system diagnostics/advanced maintenance services

• Smart Mode for guided and automated key learning

• Expert Mode for advanced key learning

• Read PIN/CS (all key lost) , key generation, key learning, remote learning

• IMMO ECU reset/adaptation, refresh/coding

• Transpronder read/write, EEPROM/MCU read/write

• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

• Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

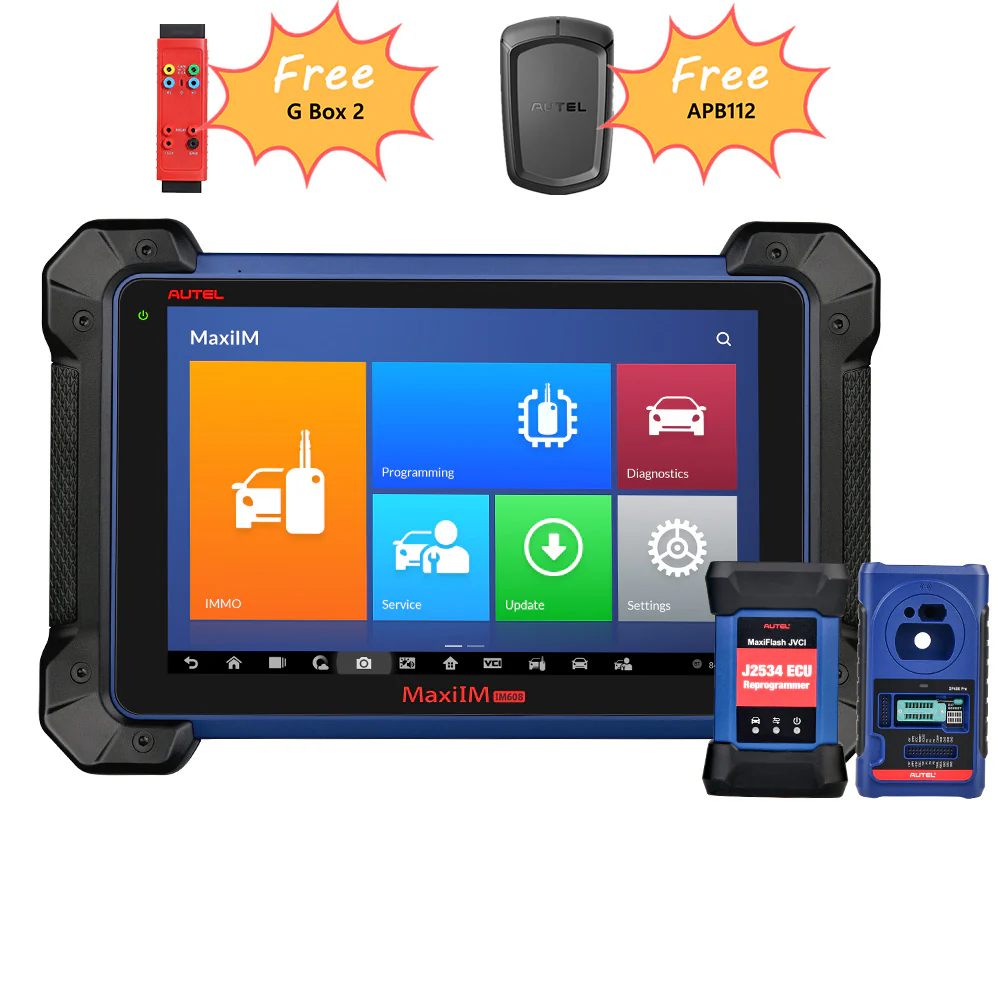

What Can G-BOX2 Do For You?

1. Supports Mercedes Benz All Key Lost, faster calculate password
2. Supports IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 W164 after 2009 Models

What Can APB112 Do For You?

1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400/XP400Pro
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. Toyota 4D (94/ D4, 98) smart key simulation
9. Toyota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. Toyota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)

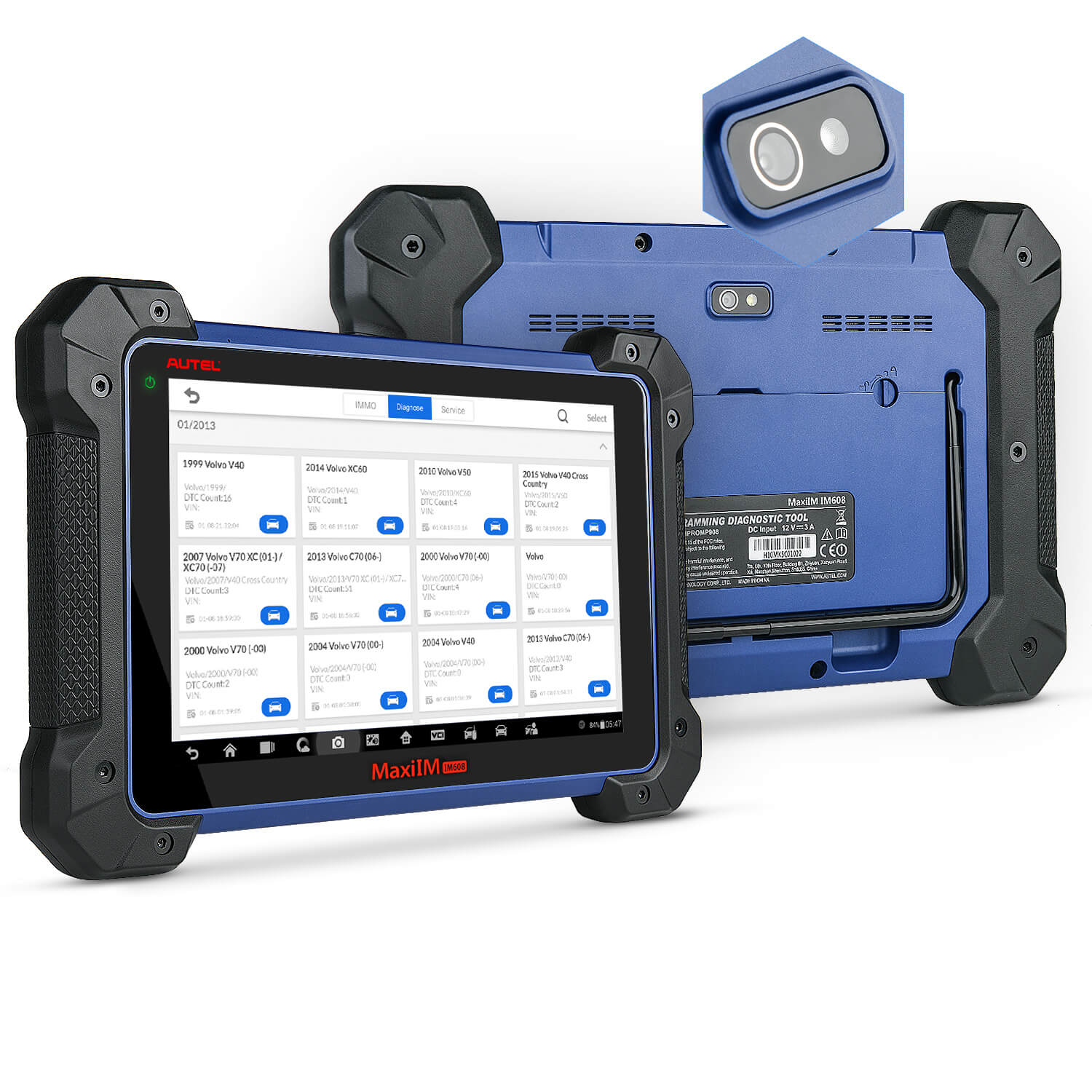

Autel IM608 Specification

Operation System	Android 4.4.2, KitKat
Processor	Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
Memory	2GB RAM & 64 GB On-board Memory
Display	10.1-inch LED capacitive touch screen with 1920*1200 resolution;
Connectivity	Wi-Fi：(802.11 a/b/g/n/ac); USB 2.0; BT v.2.1+EDR; SD Card (Support up to 32GB); HDMI
Camera(rear)	8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio	Microphone; Dual Speakers
Input/output	3-Band 3.5mm stereo / standard headset jack
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
Input Voltage	12V (9-24V)
Power Consumption	6.5W
Operating Temp	0℃ to 50℃ (32 to 122℉)
Storage Temp	-20℃ to 60℃ (-4 to 140℉)
Dimensions(W*H*D)	300mm (11.81") x 220.0mm (8.66") x 50.0mm (1.97")
Weight NW	1.42kg (3.13lb.)
GW	8.655kg(19.08lb)
Protocols	ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, Highspeed, Middlespeed, Low-speed and Singlewire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

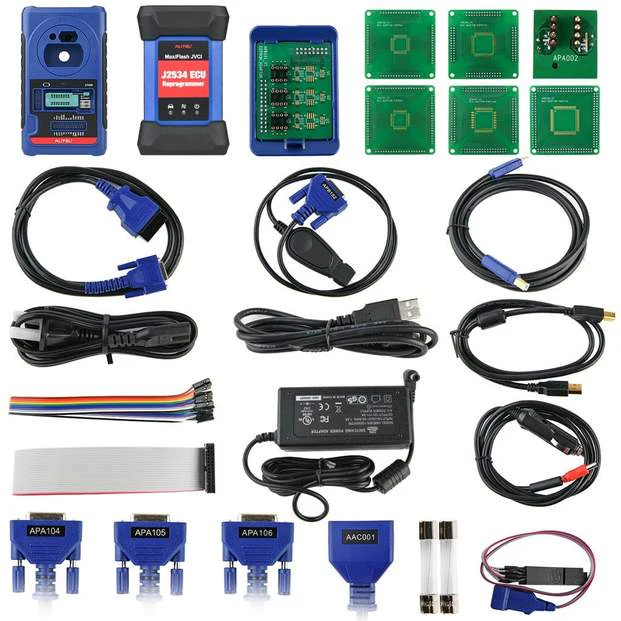

Autel MaxiIM IM608 Package List:

• 1x Autel MaxiIM IM608 Main Unit
• 1x APC101 USB Cable
• 1x APA101 Signal Cable

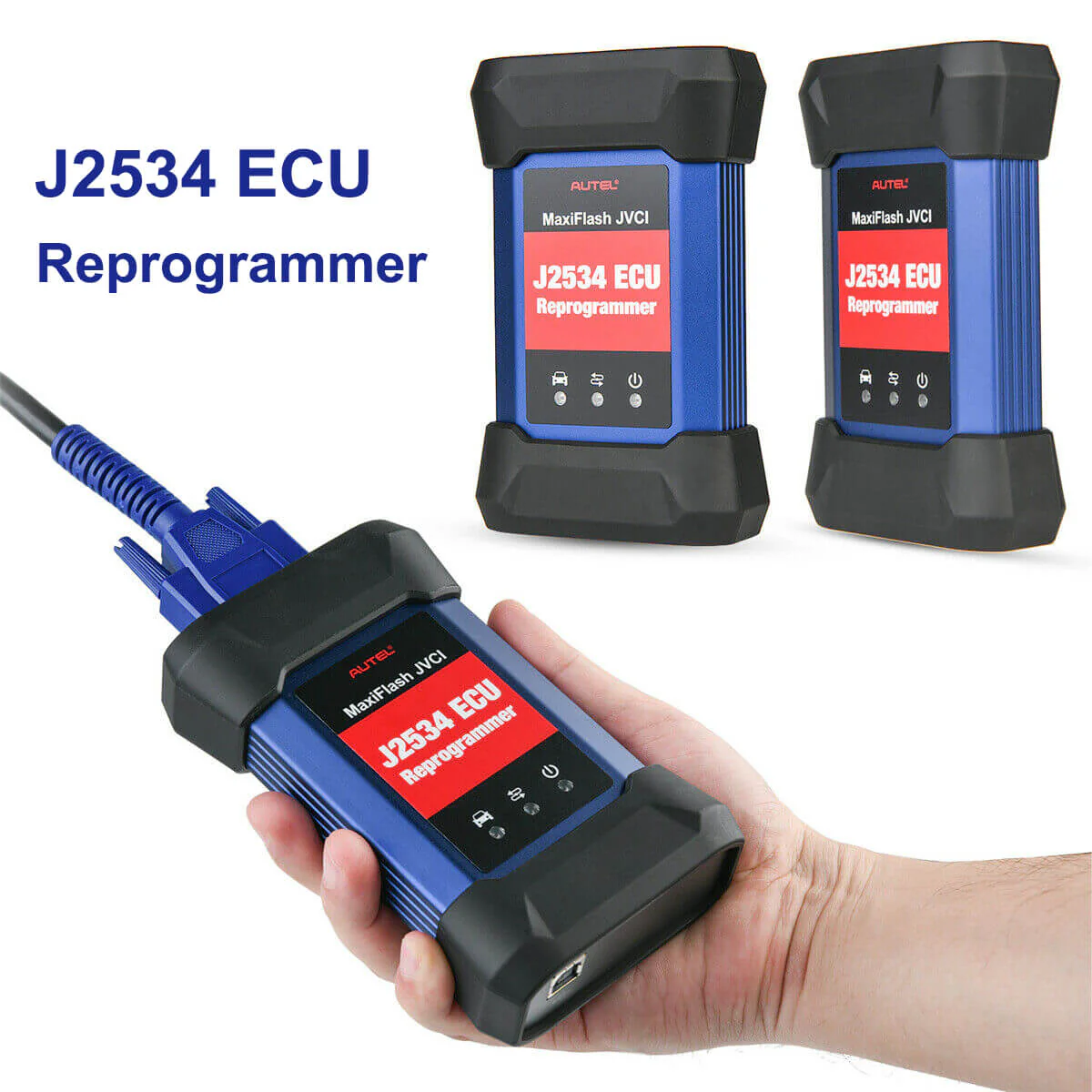

• 1x MaxiFlash JVCI
• 1x APB101+ APD101 (EEPROM Adaptor + EEPROM Adapter Shell)
• 1x APA103 (EEPROM Clamp)
• 1x XP400
• 1x APB102 MB IR Cable
• 1x APA104 ECU Clamp
• 1x Main Cable
• 1x APB104 (MCU_FQFP64)
• 1x APA105 (MCU Clamp)
• 1x USB Cable (2m)
• 1x APB105 MCU_FQFP80
• 1x APA106 (MC9S12 Clamp)
• 1x Mini USB Cable
• 1x APB106 (MCU_FQFP144)
• 1x APA107 (Connect Cable)
• 1x AC/DC 12V Adapter
• 1x APB107 (MCU_FQFP144)
• 1x Quick Reference Guide
• 2x Light Fuse 6*30mm
• 1x APB108 (MCU_FQFP176)
• 1x Packing List
• 1x Cigarette Lighter
• 1x APA002 (EEPROM Socket)
• 1x Carrying Case 634*170*404mm
• 1x AAC001
