Note ! ! !

The Autel MaxiDAS DS900 has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel MaxiPro MP900.

Autel MaxiPro MP900 👉 https://www.diagmart.com/products/autel-maxipro-mp900-mp900e-diagnostic-scanner

[discontinued]

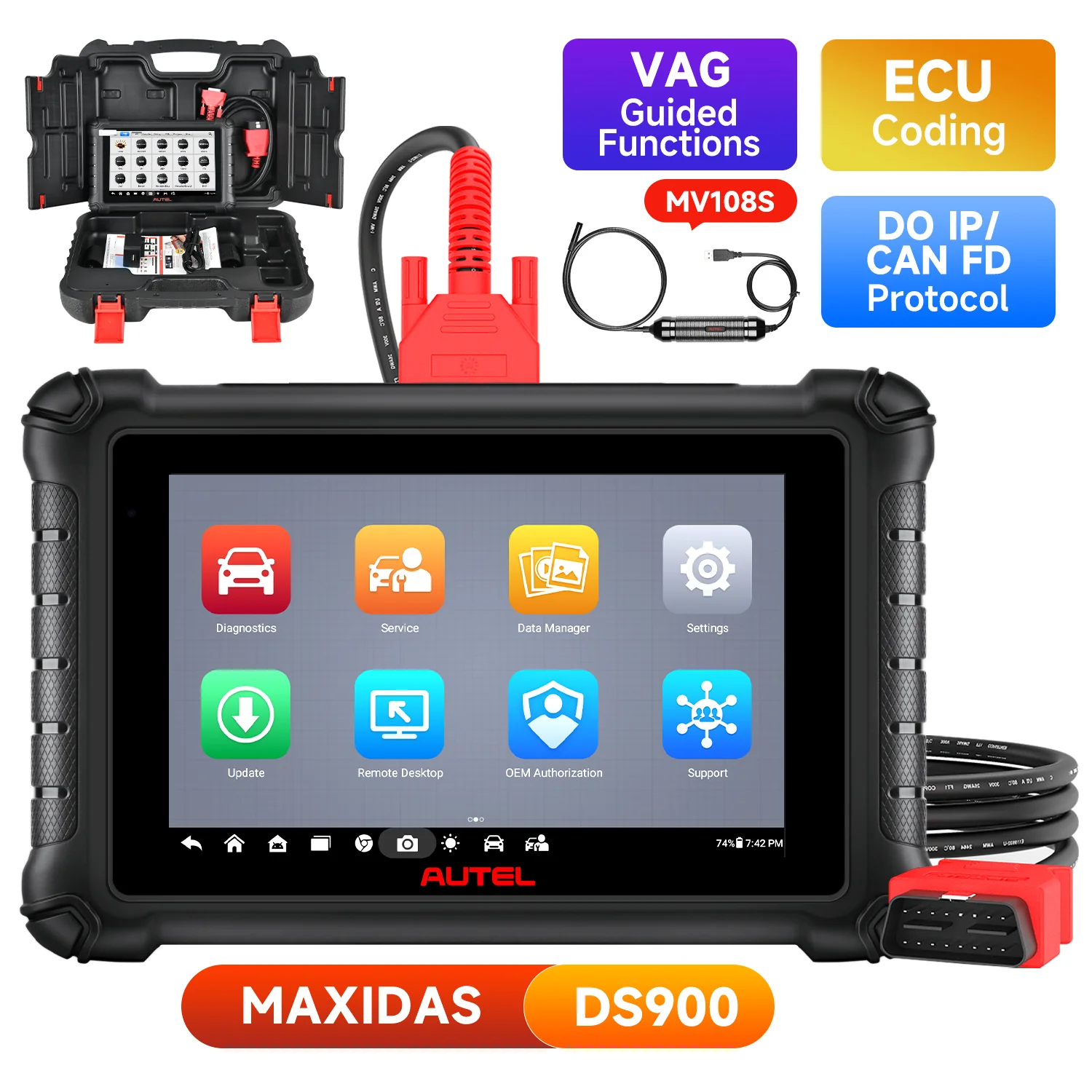

Autel MaxiDAS DS900 Diagnostic Scanner - Newly Released

Autel MaxiDAS DS900 is the newest Version released by Autel. DS900 is the new version of MaxiCOM MX900 and DS808. The MaxiDAS DS900 is designed to cover a wider range of vehicles and functions, with updated hardware, support pre & post scan, Scan VIN, support DoIp & CAN FD Protocol, and WI-FI Print. As a result, it has become the most cost-effective bidirectional scan tool in the Autel family.

MaxiDAS DS900 Newly Added Functions

• Support Pre & Post Scan
• Support Scan VIN
• Support DoIP & CAN FD Protocol
• Superior Hardware: Android 11.0, Larger Memory 4G & 64G, 8'' LCD Screen, 7700mAh Battery Capacity
• Support Wifi Print

Top Reasons to Choose MaxiDAS DS900

• Advanced ECU Coding: The MaxiDAS DS900 offers advanced ECU coding capabilities, similar to the MS906 Pro. It can match, code, and learn replaced ECUs, as well as perform adaptive data coding, customization settings, and activate high-end features.
• OE-Level All Systems Diagnostic: Autel MaxiDAS DS900 diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.
• Bi-Directional Control/Active Test: Thanks to the full bidirectional control feature, DS900 can do everything Autel DS808 does. Autel DS900 bidirectional scanner control various systems and components of the vehicle.
• Hot Service Functions: Autel DS900 car diagnostic tool also provides hot services including Oil Reset, EPB, SAS Reset, D-P-F Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.
• Enhanced Hardware: Autel MaxiDAS DS900 is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.
• Wide Coverage: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996. Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, etc.
• AUTO VIN & AUTO SCAN: Autel DS900 diagnostic scan tool can quickly work on on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.
• Extensive Functions: Support Pre & Post Scan, DoIP & CAN FD Protocol and Wifi Print, while ds808 does not support.
• 1-Year Warranty: Offering 1-Year Warranty and 1-Year-free software update for Autel DS900.

MaxiDAS DS900 Come With ECU Coding Function

Same as Autel MaxiSys MS906 Pro, Autel MaxiDAS DS900 also enables advanced ECU Coding functions. You can use it to:

ECU Replacement

Featuring ECU/Module replacement functions, MaxiDAS DS900 Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

Customize Your Own Car

• After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
• By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
• ECU Online Coding is available for BMW/Porsche/VW, etc.

Unlock Hidden Functions

Activate higher-level car functions, like making the pointer move and perform self check etc. Disable the annoying car settings such as the Automatic Start/Stop etc.

Note:

• ECU Coding does not imply changing the software! It only changes pre-programmed options already existent in the software.
• ECU Coding and Unlock Hidden Functions require the device on active software subscription.
• ECU related functions are not universal, please kindly check compatibility with us before order.

Autel MaxiDAS DS900 with Dealership Level All System Diagnostic

Autel DS900 Model performs comparable to the diagnostic capacity of the original factory. It works well to read & clear codes, ECU information reading, read live data, view freeze frame, graphic data, and performs special functions for all available systems.

The DS900 is your best choice for all system diagnostic, including Anti-lock Brake System(ABS), Electronic Parking Brake(EPB), Battery Mange System(BMS), Supplemental Restraint System(SRS), Steering Angle System(SAS), Air Conditioning System, etc.

Autel MaxiDAS DS900 With Bi-Directional Control

Autel MaxiDAS DS900 Scanner performs bi-directional control, which is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to a command well.

To be more clear, I will take an example for you:

• If one part of your vehicle didn't work, you are able to use the DS900 scanner to quickly shot the trouble without removing any parts. So convenient for Home Mechanic and Workshop!
• Here are some specific application situations:
• Turn on / off Doors & Windows & Lights
• Adjust the Window Wipers & Headlamp
• Mirrors Folding / Unfolding
• Note: Autel DS900 is not universal for all vehicles, if you are interested in this device, email us with your vehicle VIN for a compatible check.

MaxiDAS DS900 Hot Maintenance Services

Maybe you are always haunted by the following situations:

• Highly Maintenance and Repair Costs
• Low Coverage
• Outdated device

Fortunately, with hot maintenance services, wide coverage, and high-frequency updating, this Autel MaxiDAS DS900 Diagnostic Scan tool is able to perfectly relieve your anxiety.

The services are included but not limited Oil Reset, EPB Reset, TPMS Reset, ABS Bleed, BMS Reset, Throttle Matching, SAS Calibration, Suspension Calibration, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, Cylinder, Clutch, A/F Setting, etc.

Note: The compatible services may differ from different vehicles.

Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;

Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;

SAS Reset: Perform steering angle sensor calibration and clear records;

BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.

ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;

DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

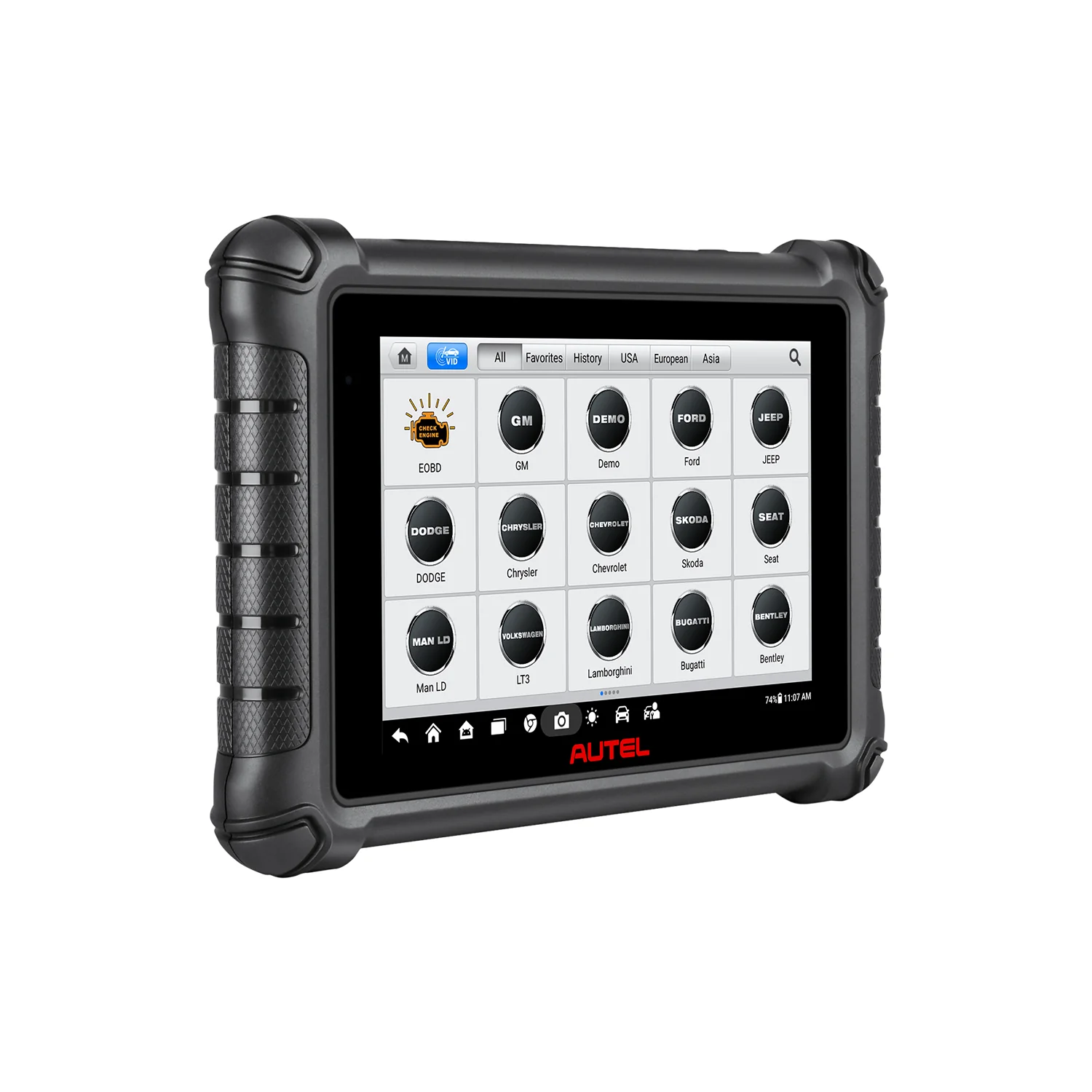

MaxiDAS DS900 with Wide Coverage

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.

Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...

Note: Autel MaxiDAS DS900 is not universal for all vehicles, please email us at [email protected], and send us your VIN to have a compatible check.

MaxiDAS DS900 Extensive Functions

Work with MV108S

This OBD II Scanner DS900 is compatible with Autel Digital Inspection Cameras(MV105/108) which is sold separately and this DS900 will help you view more credible images.

More help will be provided

Remote Desk allows you to quickly get the support from Autel's technicians

Auto VIN

This function allows you accurately and fast identification of Vehicle Information

Specifications about Autel MaxiDAS DS900

Operating   System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
	Charges via 5 VDC power supply
Battery Charging Input	5V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

Autel MaxiDAS DS900 Comparison Chart

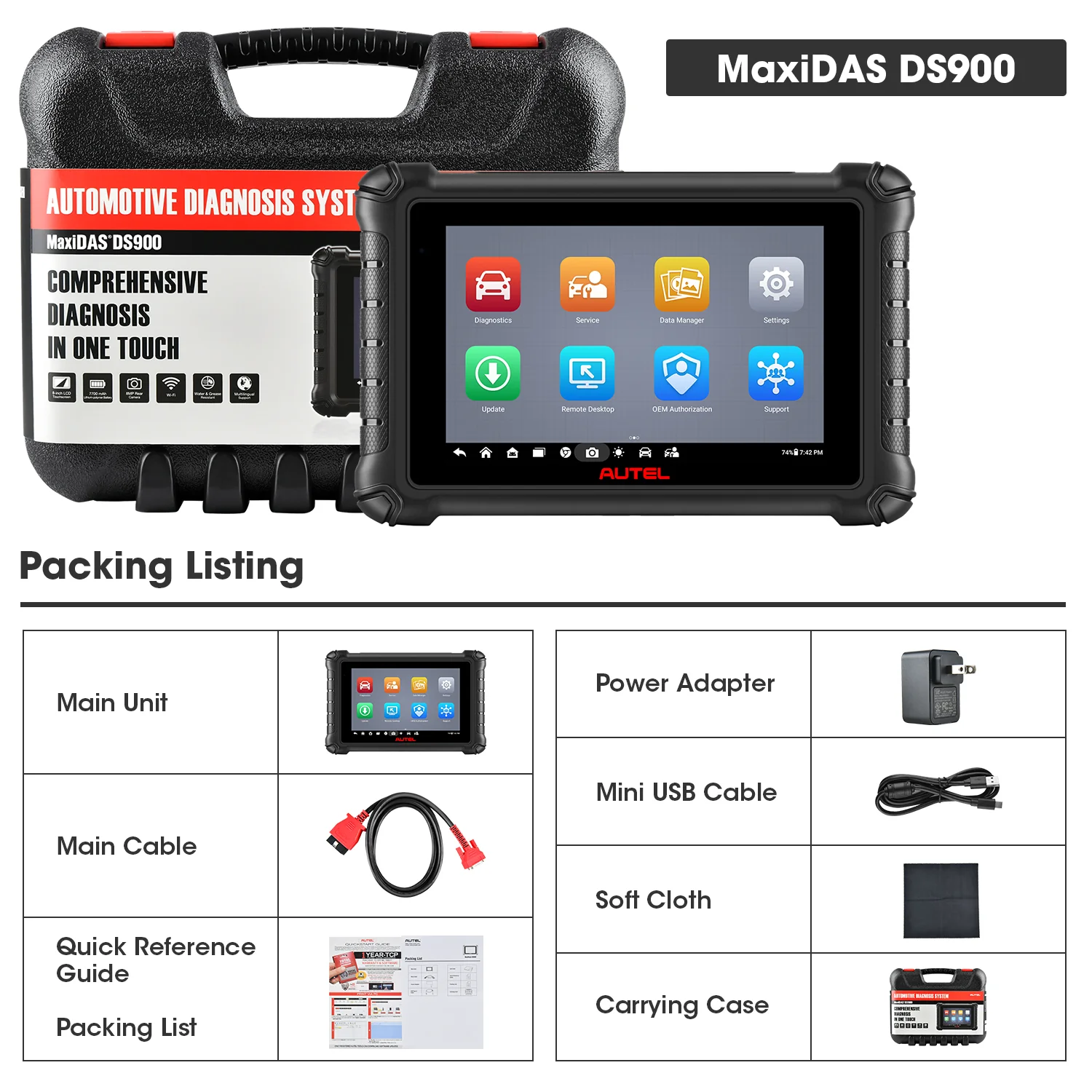

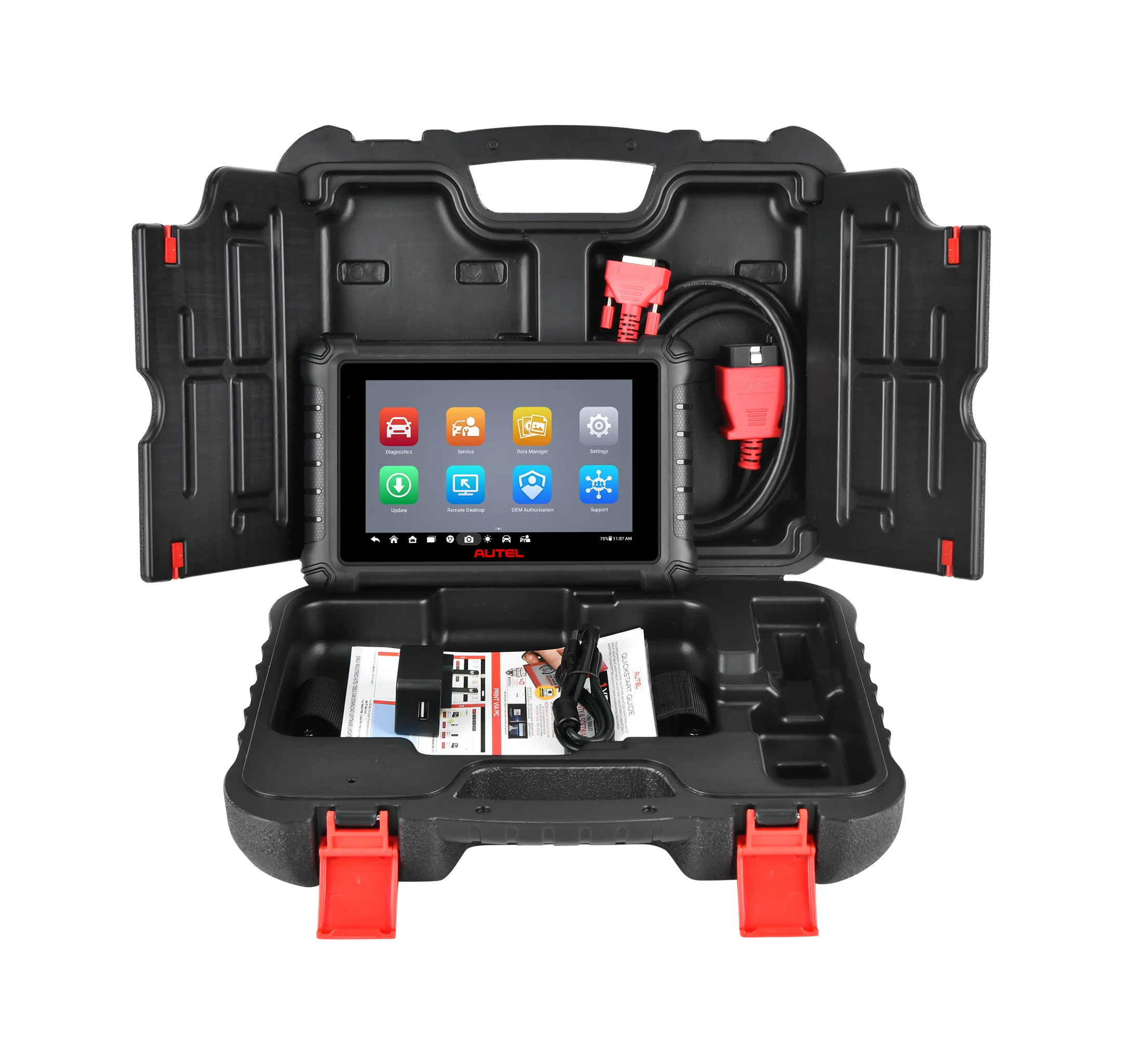

Autel MaxiDAS DS900 Package List

MaxiDAS DS900 Product guides and documents

DS900 User Manual (PDF)
DS900 Quick Guide (PDF)
